Compact Shackles

Developed alongside the compact swivel range, our new compact shackles are light, strong and tamper resistant. The double allen key locking axle locks in components forming a smooth multi directional semi-fixed link.

Product Name Product Code Colour MBS WLL Dimensions Weight Certification Price

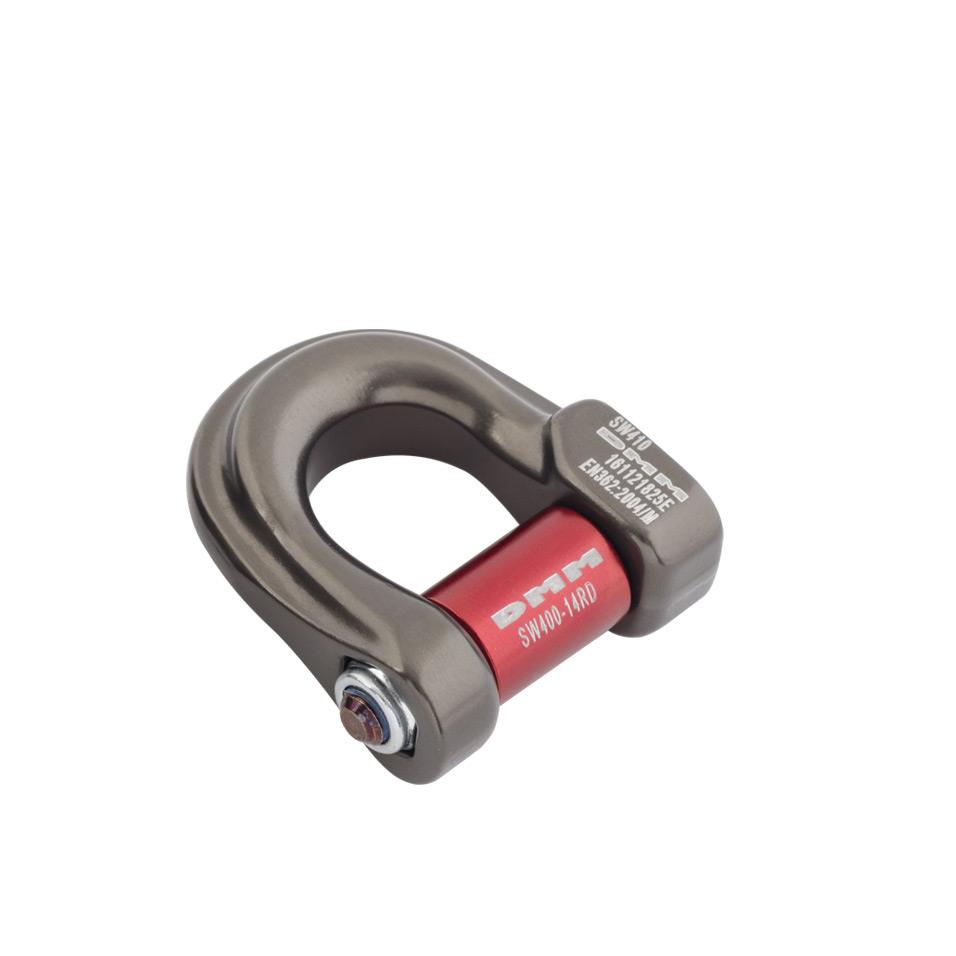

Compact Shackle S - D Shape - SW410
SW410 Titanium 26kN n/a 39 x 35 x 15mm 28g EN 362:2004/M
Compact Shackle L - Bow Shape - SW420
SW420 Titanium 26kN n/a 44 x 48 x 15mm 35g EN 362:2004/M
Compact Shackle D - SW410MG
SW410MG Matt Grey 26kN 39 x 35 x 15mm EN362:2004 M
Compact Shackle Bow - SW420MG
SW420MG Matt Grey 26kN 44 x 47.5 x 14.5mm 35g EN362:2004 M


Hot forged aluminium

Shackle use 4mm and 2mm Allen keys to ensure secure locking
