Locking gate types
Screwgate
Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.
Kwiklock
Auto-locking gate requiring two distinct actions to open.
Locksafe
Auto-locking gate requiring three distinct actions to open.
Durolock
Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).
Kwiklock ANSI
Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Locksafe ANSI
Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Tech Specs
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|
| Ultra D Matt Grey Kwiklock | A333MG | 66 x 113mm | 84g | 30kN | 12kN | 9kN | 22mm | EN362:2004 B EN12275:2013 B |

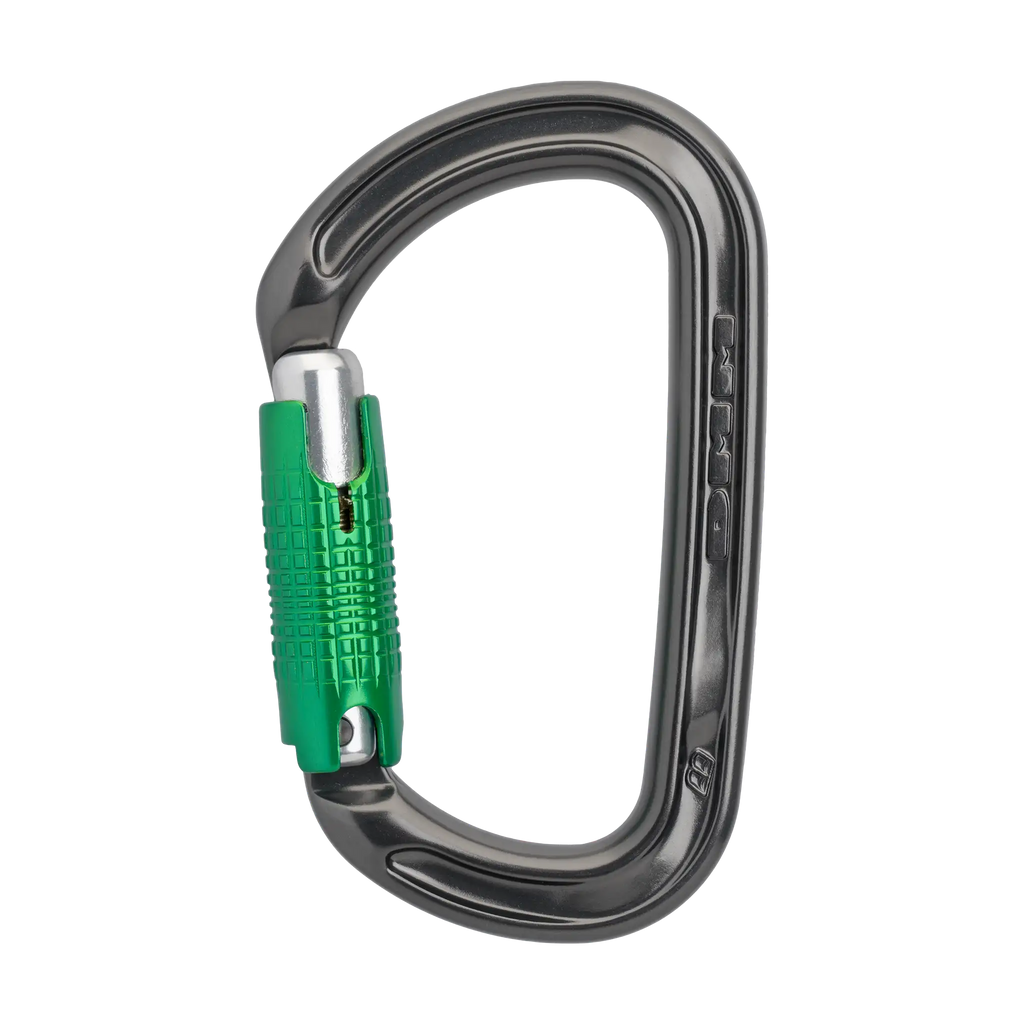

| Ultra D Titanium/Green Locksafe iD | A337-ID | 84g |
