Compact termination carabiners for every application.

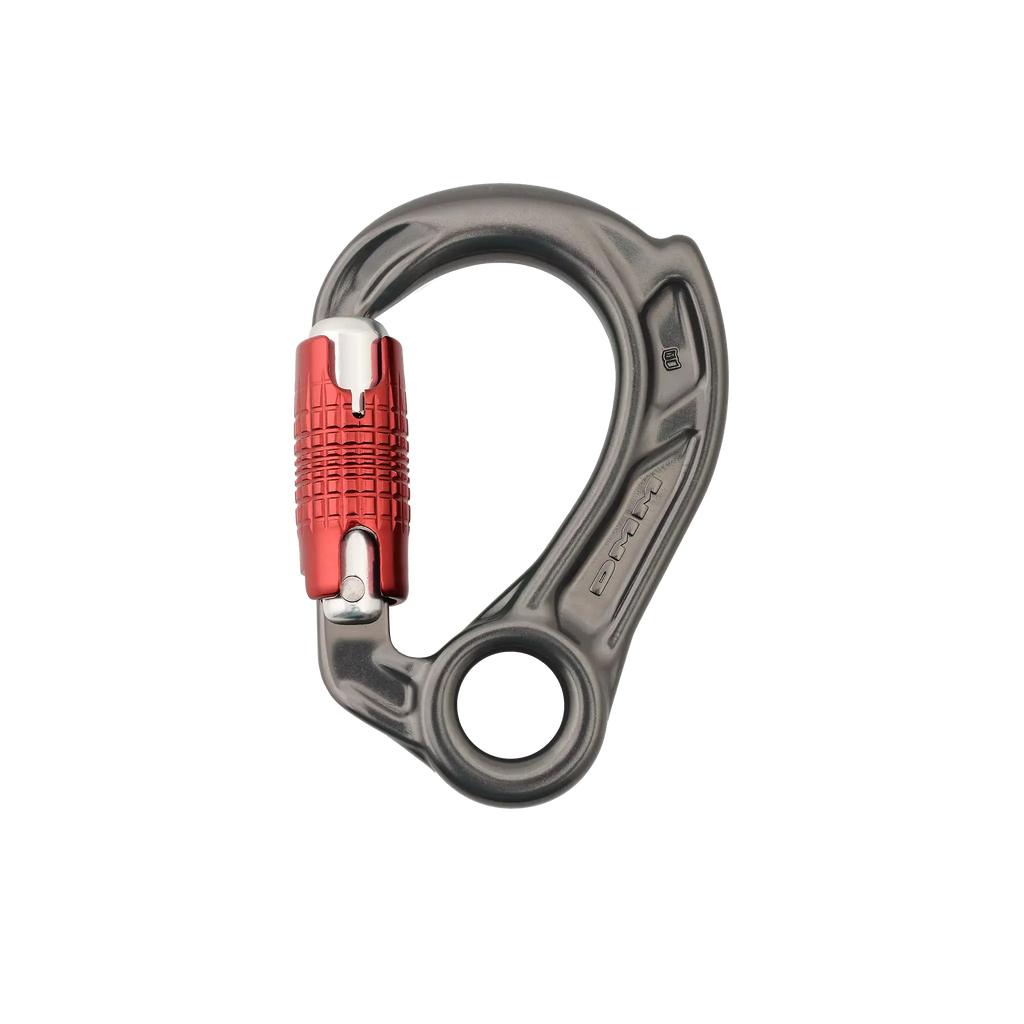

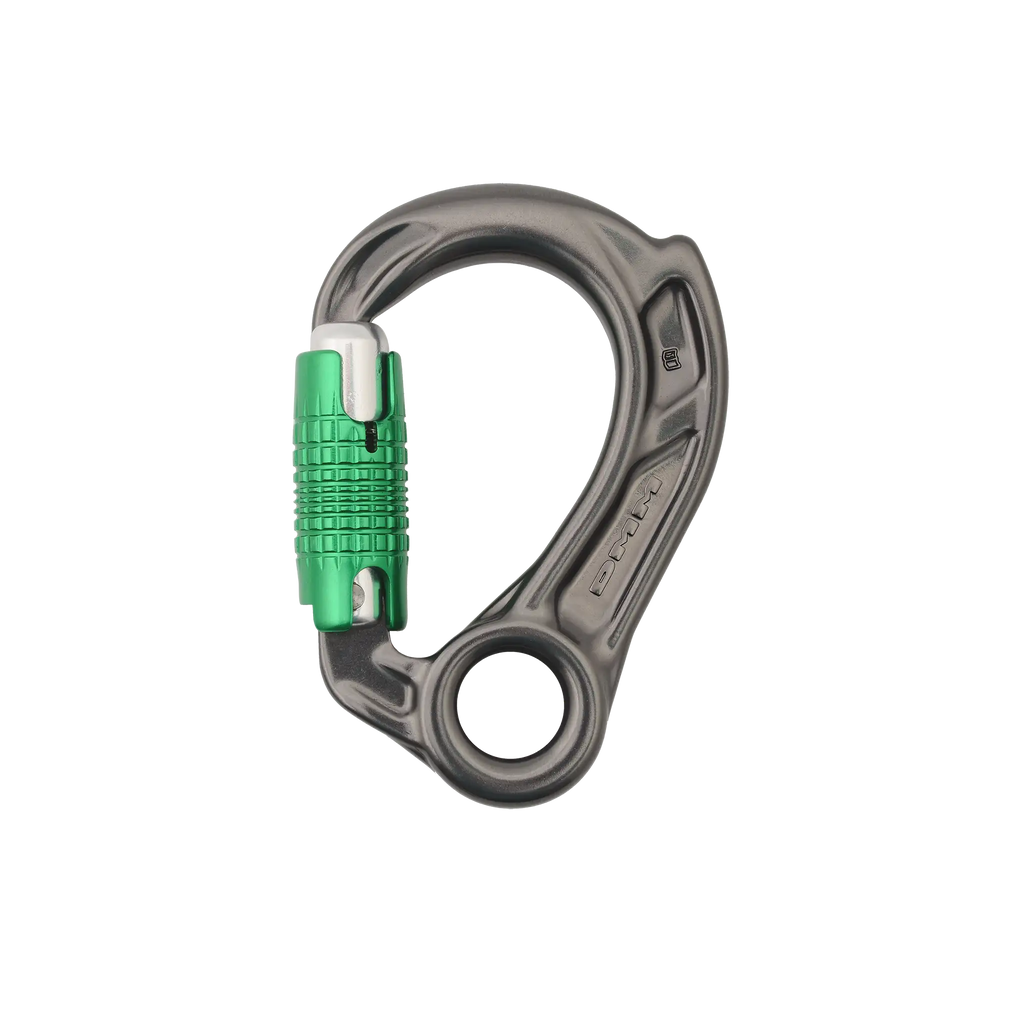

The Director Captive Eye is a compact termination connector, designed to load in the strongest orientation. Ideal for lanyards, these lightweight, versatile and strong carabiners are easy to handle and can reduce the overall length of a system.
Featuring a textile friendly attachment eye, our new extra short gate, a generous curve in the loading area and boasting healthy gate openings, the Director Captive Eye can be stitched, spliced or knotted into a lanyard or system according to the end use.
Locking gate types
Screwgate
Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.
Kwiklock
Auto-locking gate requiring two distinct actions to open.
Locksafe
Auto-locking gate requiring three distinct actions to open.
Durolock
Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).
Kwiklock ANSI
Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Locksafe ANSI
Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.
Tech Specs
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|
| Director Captive Eye Screwgate | A652 | 64 x 93mm | 59g | 26kN | N/A | 9kN | 17mm | EN12275:2013 T EN362:2004 T |
| Director Captive Eye Kwiklock | A653 | 64 x 93mm | 64g | 26kN | N/A | 9kN | 17mm | EN12275:2013 T EN362:2004 T |
| Director Captive Eye Locksafe | A657 | 64 x 93mm | 65g | 26kN | N/A | 9kN | 16mm | EN12275:2013 T EN362:2004 T |
