Linkit

Linkits are the missing link in lightweight compact rigging. Based around a 'boss and yoke' concept, this line of connecting components is compatible with a range of DMM products, such as Compact Shackles, Focus and Nexus.

These CE-compliant elements open up a world of creative rigging options with the added advantage of making discrete systems possible. They enable very short connections making them ideal for height-constrained situations and confined spaces.

Product Name Product Code Colour Dimensions Weight MBS WLL Certification Price

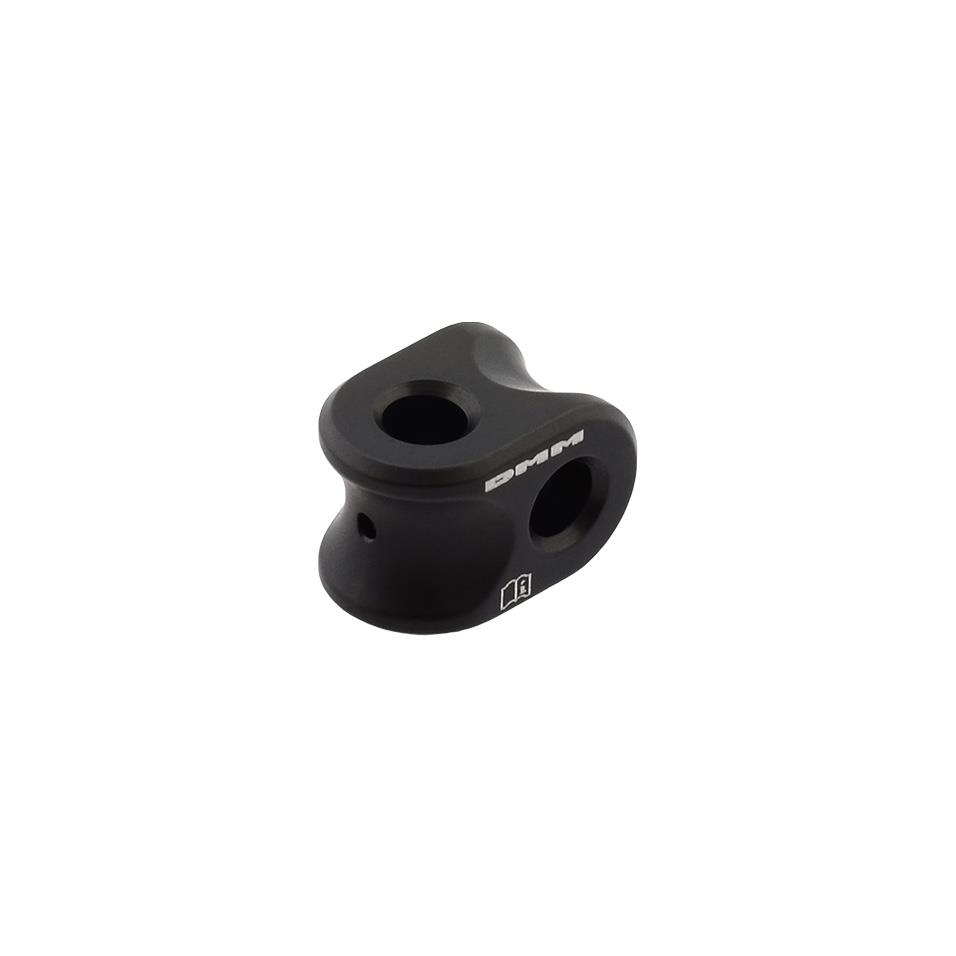

Linkit B2T - SW510
SW510 Matt Grey 22 x 15 x 15mm 7g 26kN 5kN Manufacturers Technical Specification QAP95
£13.99

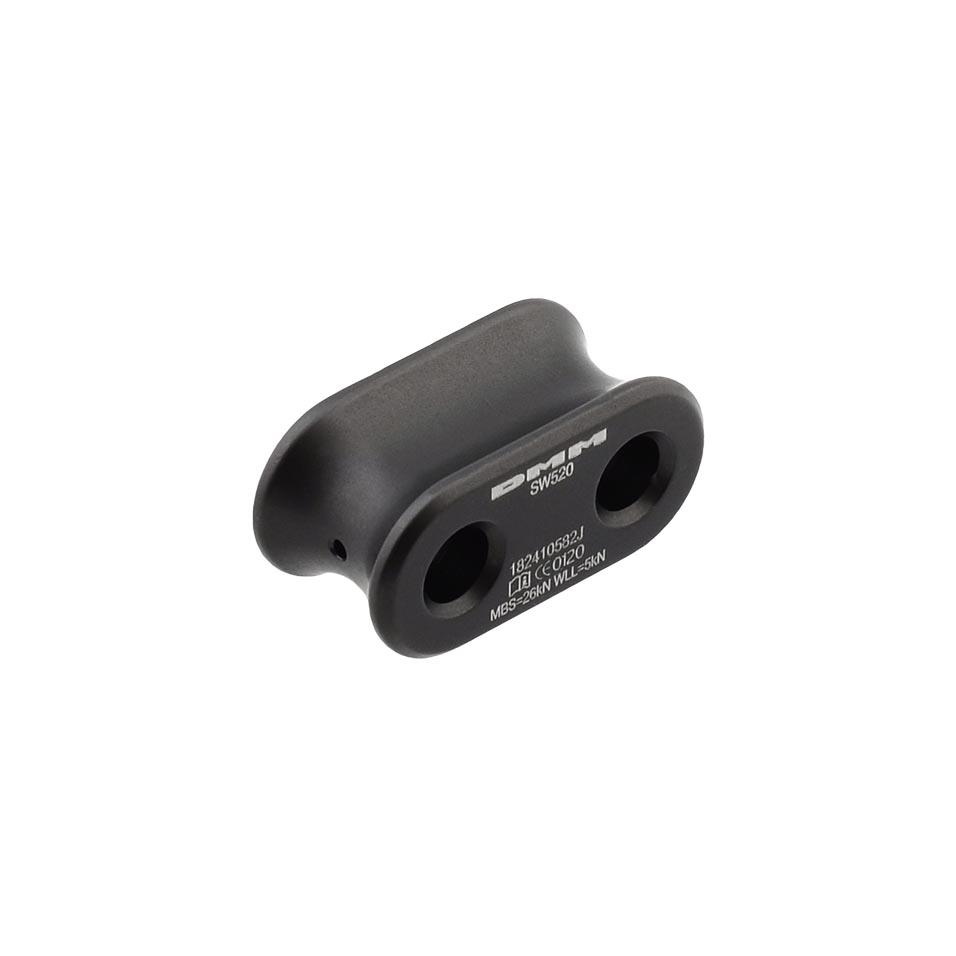

Linkit B2 - SW520
SW520 Matt Grey 32 x 15 x 15mm 11g 26kN 5kN Manufacturers Technical Specification QAP95
£13.99

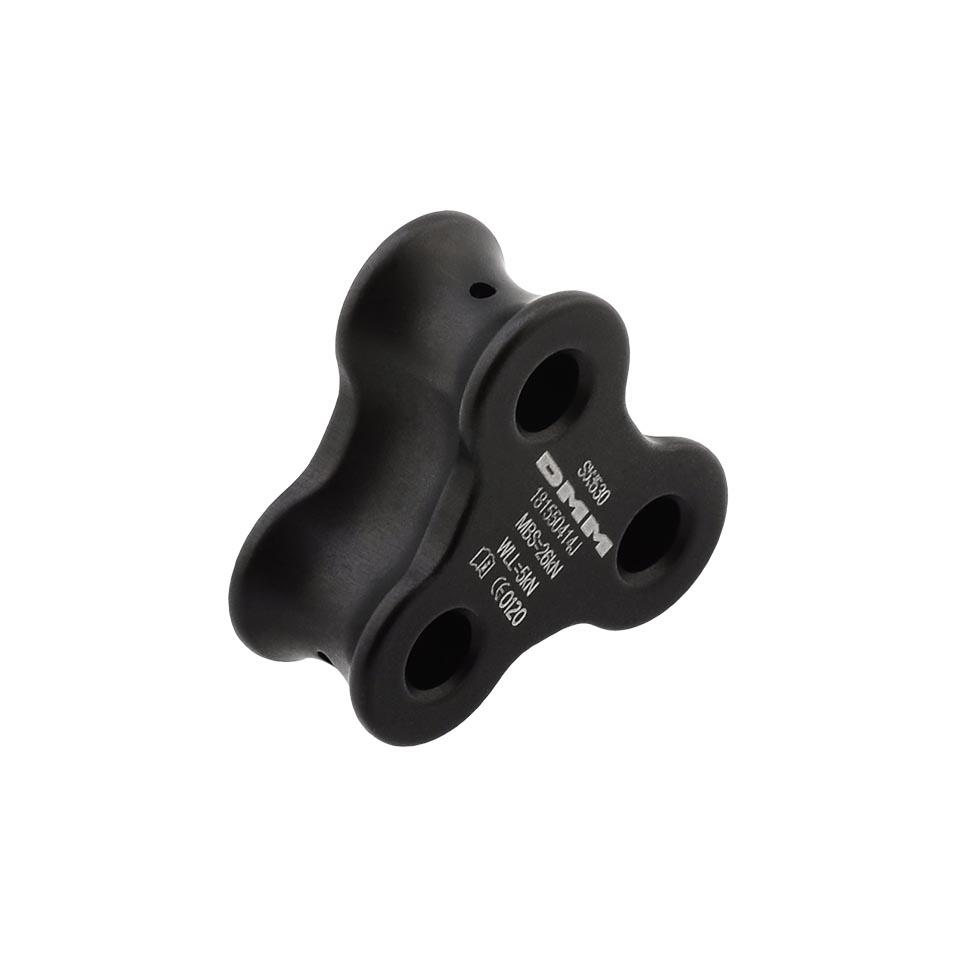

Linkit B3 - SW530
SW530 Matt Grey 35 x 15 x 35mm 20g 26kN 5kN Manufacturers Technical Specification QAP95
£17.99

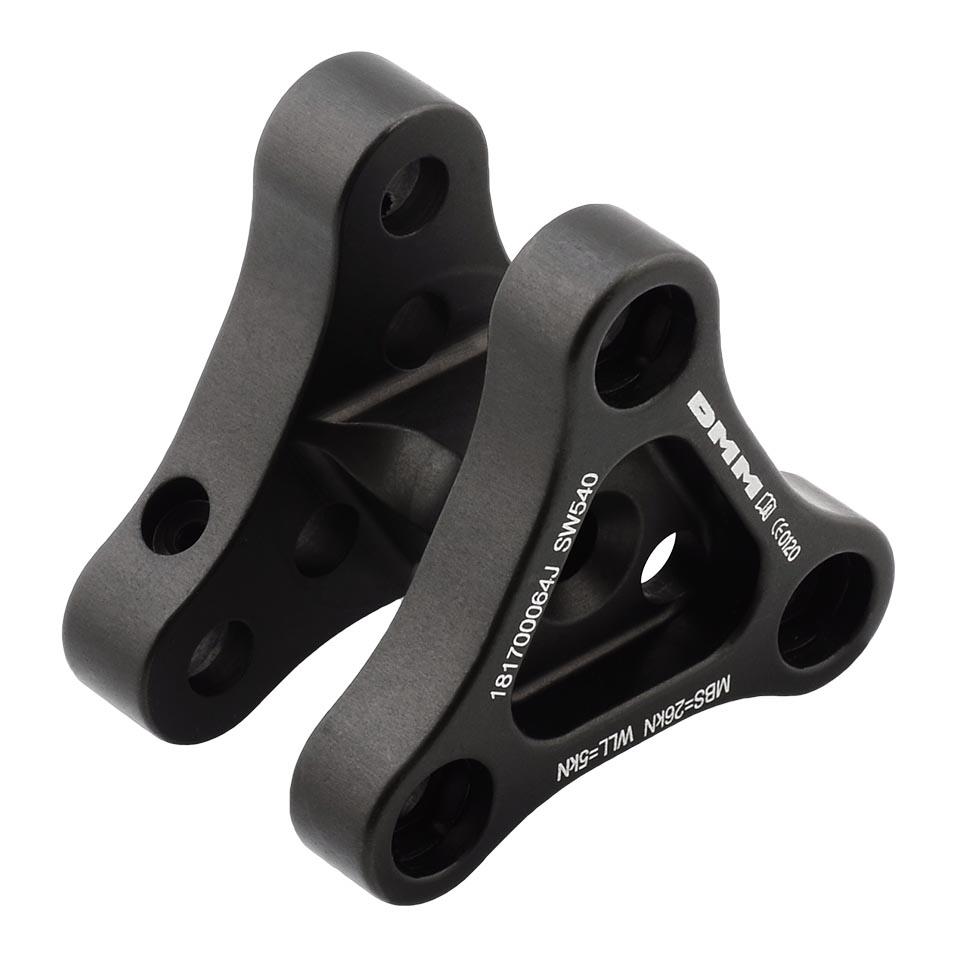

Linkit Y3 - SW540
SW540 Matt Grey 50 x 50 x 35mm 50g 26kN 5kN Manufacturers Technical Specification QAP95
£34.99
Linkit B2T - iD - SW510-ID
SW510-ID Matt Grey 22 x 15 x 15mm 7g 26kN 5kN Manufacturers Technical Specification QAP95
£17.03
Contact DMM
Linkit B2 - iD - SW520-ID
SW520-ID Matt Grey 32 x 15 x 15mm 11g 26kN 5kN Manufacturers Technical Specification QAP95
£17.03
Contact DMM
Linkit B3 - iD - SW530-ID
SW530-ID Matt Grey 35 x 15 x 35mm 20g 26kN 5kN Manufacturers Technical Specification QAP95
£21.03
Contact DMM
Linkit Y3 - iD - SW540-ID
SW540-ID Matt Grey 50 x 50 x 35mm 50g 26kN 5kN Manufacturers Technical Specification QAP95
£38.03
Contact DMM
