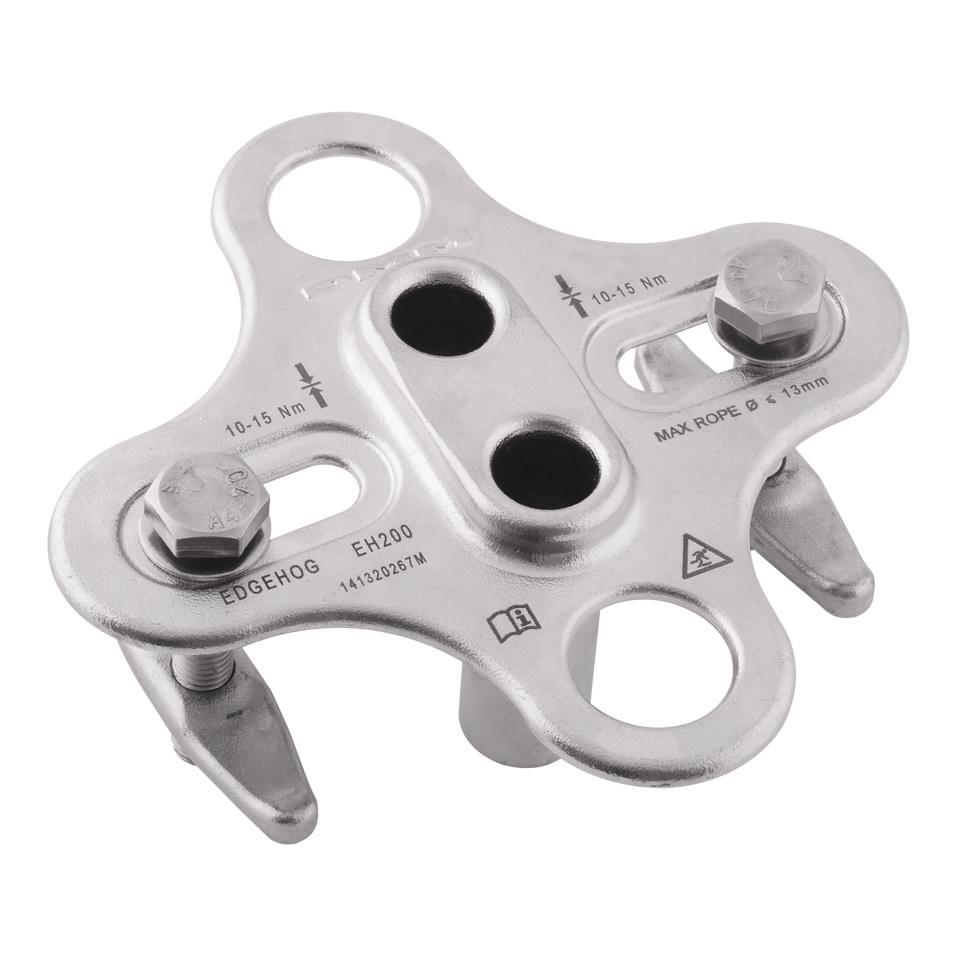

Edgehog

Designed for use in rope access, but applicable in any situation where ropes run through gratings. The Edgehog fits through deck grating (commonly known as Kennedy Grating) which is found in many industrial situations such as oil rigs, chemical plants, refineries etc.

Made from marine grade 316 stainless steel, the Edgehog is a durable and robust solution to the difficulties involved in running ropes through decking.

Product Name Product Code Colour Dimensions Weight Max. Rope Diameter Price
Edgehog - EH200
EH200 Silver 70 x 150 x 150mm 715g 13mm
£109.99

Two rope slots with rounded, rope friendly radii

Marine grade stainless steel for enhanced corrosion resistance in offshore environments

Low profile to minimise trip hazard

Fixation bolts with adjustments for different grating sizes (17mm spanner required)

Maximum rope diameter: 13mm

Clip-in point for transportation

Minimum grating hole size: 24 x 58mm

Maximum grating depth: 45mm

Edgehog product features

An overview of the features and benefits of the Edgehog.
