Compact, strong and hard wearing yet incredibly versatile in application. The oval shape centralises loaded connectors, slings, pulleys etc. minimising the unnerving jumping of equipment associated with D shaped connectors.
| Product Name | Product Code | Colour | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Dimensions | Weight | Gate Opening (X) | Certification | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
10mm Oval Screwgate - C452
|
C452 | Light Gold | 30kN | 12kN | 10kN | 56 x 106mm | 172g | 16mm | EN 362:2004 B/T, EN12275:2013 B |
£11.99
|
|
|

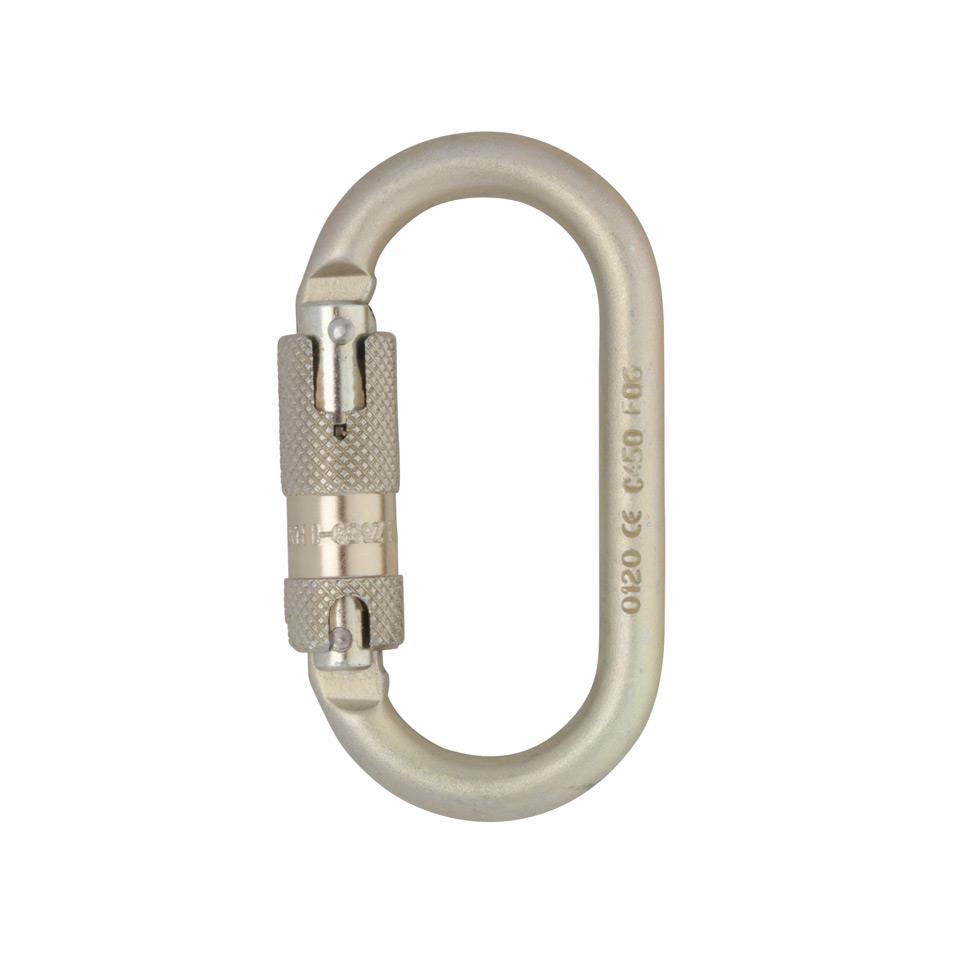

10mm Oval Kwiklock - C453
|
C453 | Light Gold | 30kN | 12kN | 10kN | 56 x 106mm | 184g | 18mm | EN 362:2004 B/T, EN12275:2013 B |
£15.99
|
|
|
10mm Oval Kwiklock ANSI - C453ANSI
|
C453ANSI | Light Gold | 30kN | 16kN | 10kN | 56 x 106mm | 199g | 17mm | EN 362:2004 B/T, ANSI/ASSE Z359.12-2009 |
£17.99
|
|
|

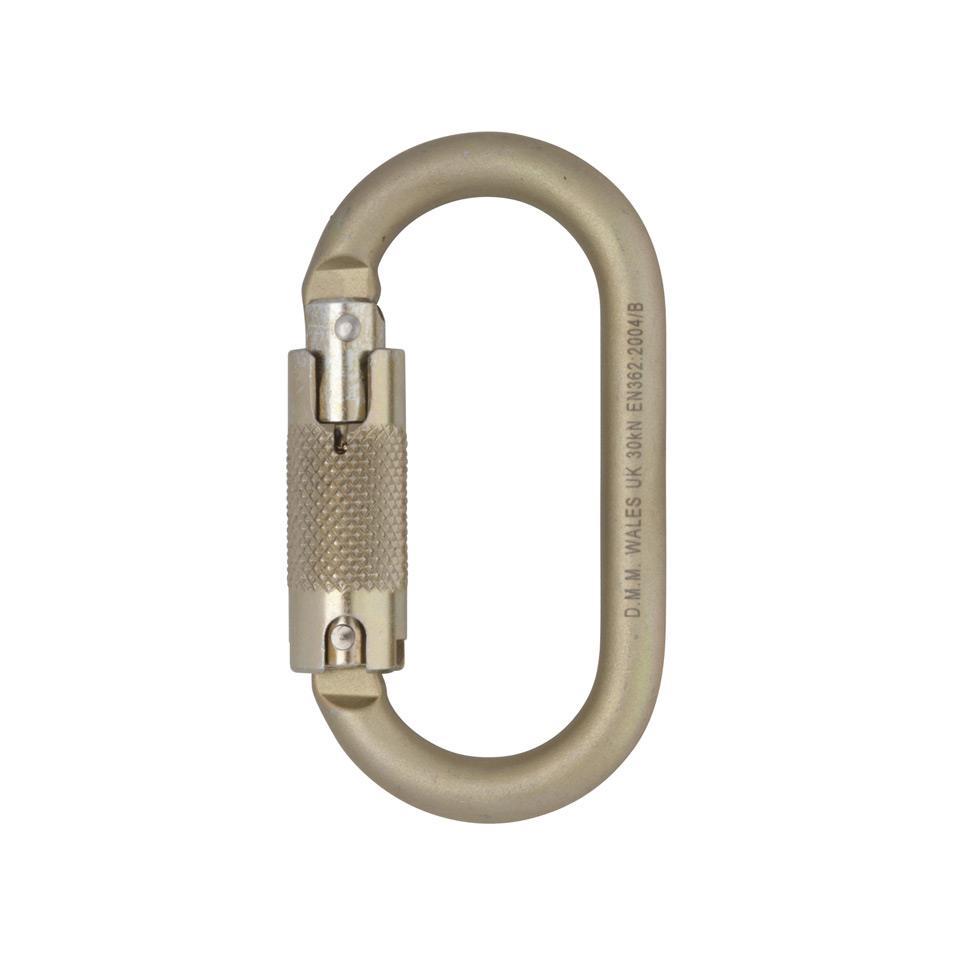

10mm Oval Locksafe - C457
|
C457 | Light Gold | 30kN | 12kN | 10kN | 56 x 106mm | 189g | 12mm | EN 362:2004 B/T, EN12275:2013 B |
£16.99
|
|
|
10mm Oval Locksafe ANSI - C457ANSI
|
C457ANSI | Light Gold | 30kN | 16kN | 10kN | 56 x 106mm | 202g | 17mm | EN 362:2004 B/T, ANSI/ASSE Z359.12-2009 |
£18.99
|
|
|
10mm Steel Oval Screwgate iD - C452-ID
|
C452-ID | Light Gold | 30kN | 12kN | 10kN | 56 x 106mm | 172g | 16mm | EN 362:2004 B/T, EN12275:2013 B |
£15.03
|
Contact DMM |
|
10mm Oval Kwiklock - iD - C453-ID
|
C453-ID | Light Gold | 30kN | 12kN | 10kN | 56 x 106mm | 184g | 18mm | EN 362:2004 B/T, EN12275:2013 B |
£19.03
|
Contact DMM |
|
10mm Oval Locksafe - iD - C457-ID
|
C457-ID | Light Gold | 30kN | 12kN | 10kN | 56 x 106mm | 189g | 12mm | EN362:2004 B, EN12275:2013 B |
£20.03
|
Contact DMM |
Oval connectors are popular in rope access and tree care situations where multiple connectors, slings, ropes or even pulleys can be connected. They are equally at home in fall arrest situations or as part of a pre-rigged rescue system. The round basket shape allows any of the connection points to self-centre when weighted – this helps avoid the unnerving click that often happens with a more D-shaped connector. The symmetrical basket mean rotation within systems is not required as they sit comfortably either way round.
