Phantom HMS

£18.99

16 reviews

Minimal weight, maximum protection.

An extremely compact, lightweight and yet strong, true HMS shape carabiner that is ideally suited to belaying and rigging. Use of an extra-short gate means it can take two clove hitches with ease.

FEATURES

Round, durable and generous rope bearing surface

Rope friendly (larger bend radius) and smooth belaying

True HMS shape

Allows the use of an Italian Hitch

Slim and tapering nose

Good for connecting to textiles

Extra short gate

Allows more working space inside the carabiner

Three gate options

Available with a screwgate, Locksafe or Kwiklock gate

Locking gate types

Screwgate

Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.

Kwiklock

Auto-locking gate requiring two distinct actions to open.

Locksafe

Auto-locking gate requiring three distinct actions to open.

Durolock

Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).

Kwiklock ANSI

Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Locksafe ANSI

Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Tech Specs

Product Name Product Code Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification

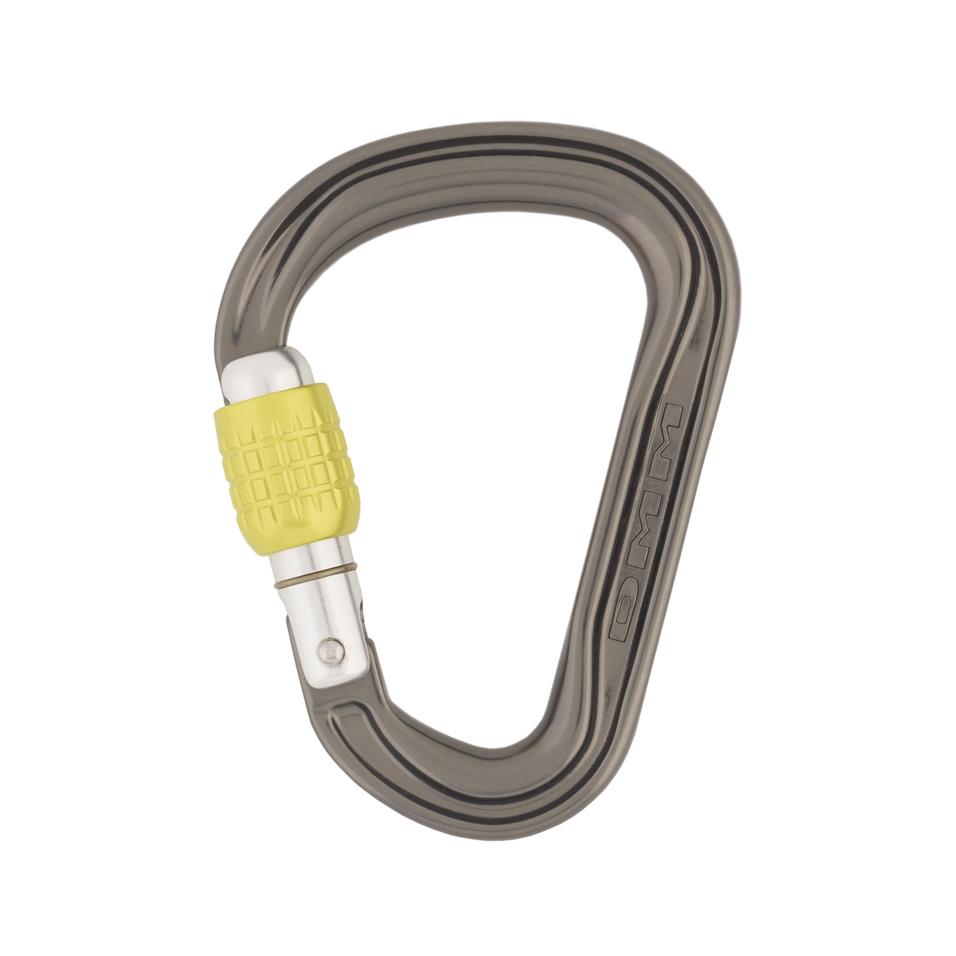

Phantom HMS Screwgate Lime A572LG 71 x 96mm 56g 25kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H
Phantom HMS Screwgate Titanium A572 71 x 96mm 56g 25kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H
Phantom HMS Kwiklock Titanium A573 71 x 96mm 61g 25kN 9kN 7kN 19mm EN362:2004 B
EN12275:2013 B/H
Phantom HMS Locksafe Titanium A577 71 x 96mm 62g 25kN 9kN 7kN 19mm EN362:2004 B
EN12275:2013 B/H

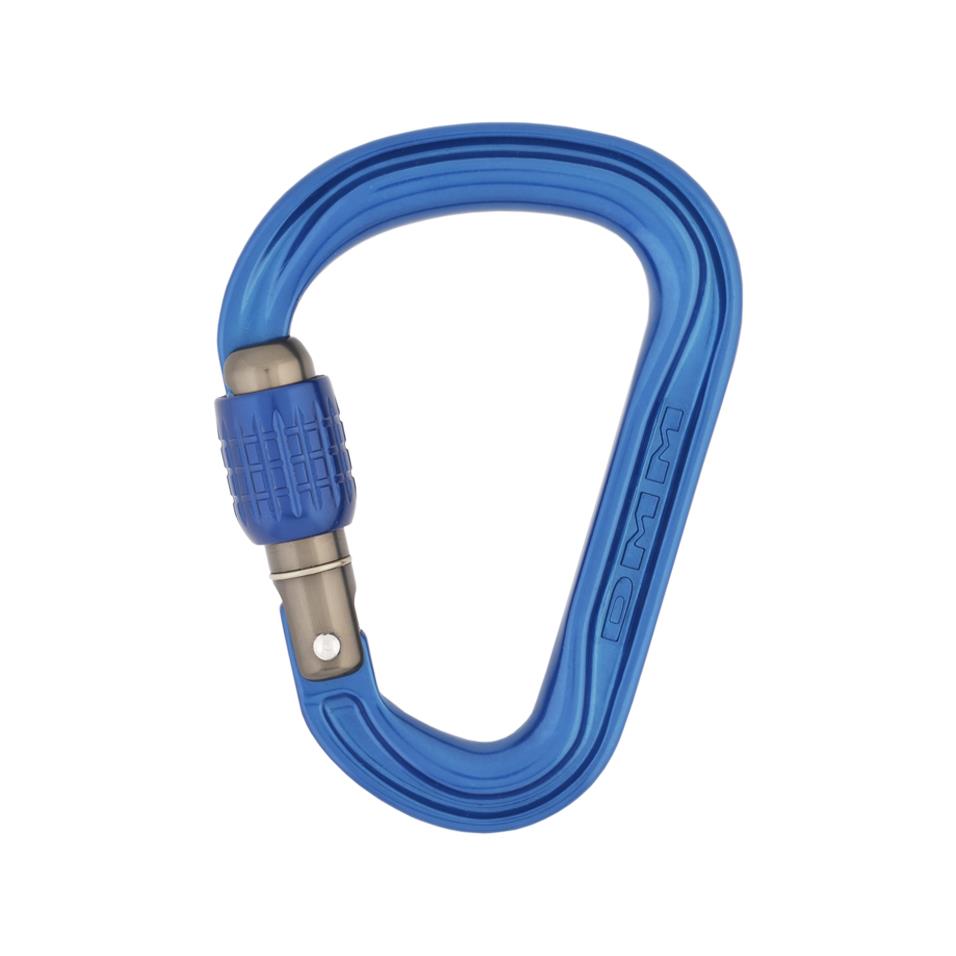

Phantom HMS Screwgate Blue A572BL 71 x 96mm 56g 25kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H
Phantom HMS Screwgate Matt Grey A572MG 71 x 96mm 56g 25kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H

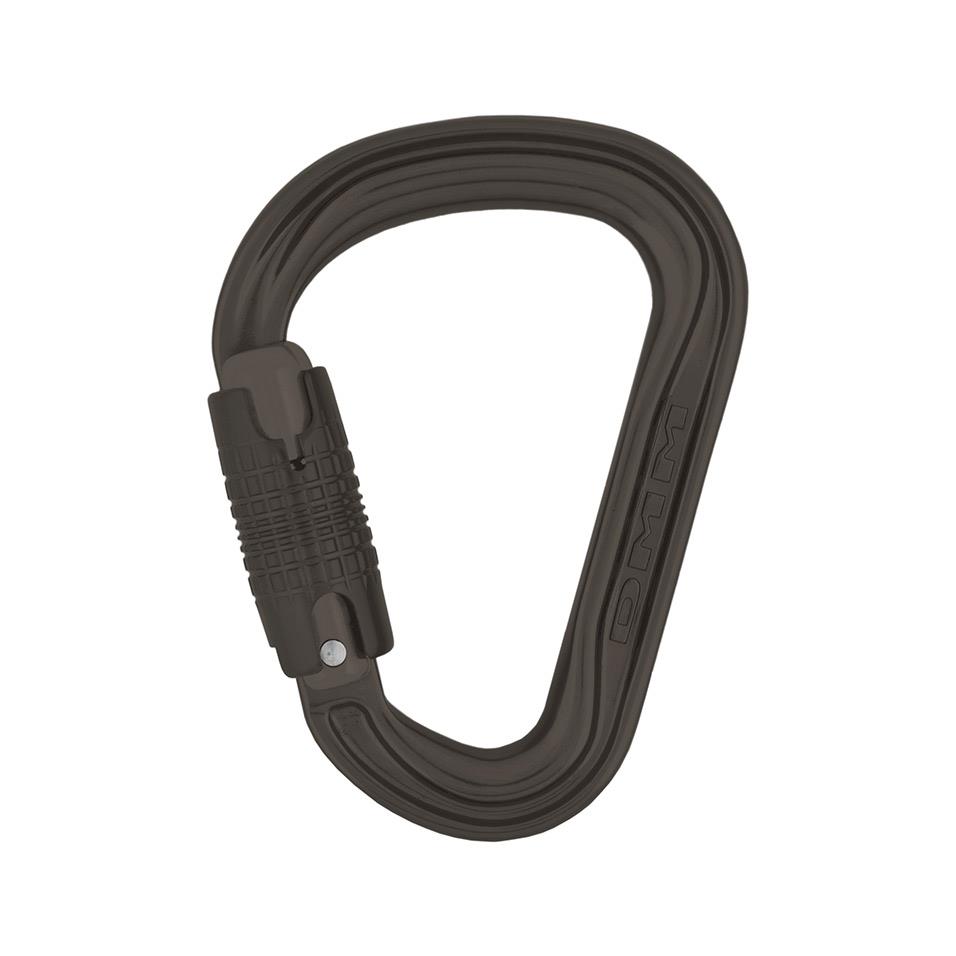

Phantom HMS Kwiklock Matt Grey A573MG 71 x 96mm 61g 25kN 9kN 7kN 19mm EN362:2004 B
EN12275:2013 B/H

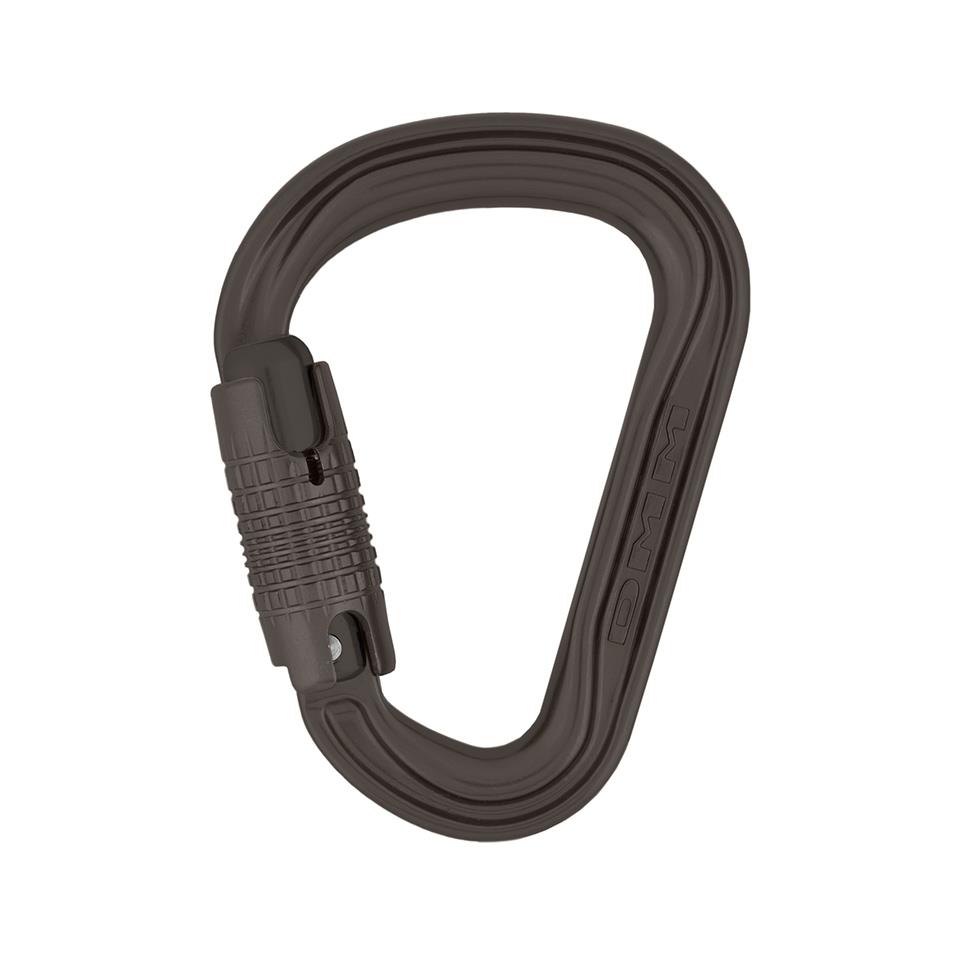

Phantom HMS Locksafe Matt Grey A577MG 71 x 96mm 62g 25kN 9kN 7kN 19mm EN362:2004 B
EN12275:2013 B/H

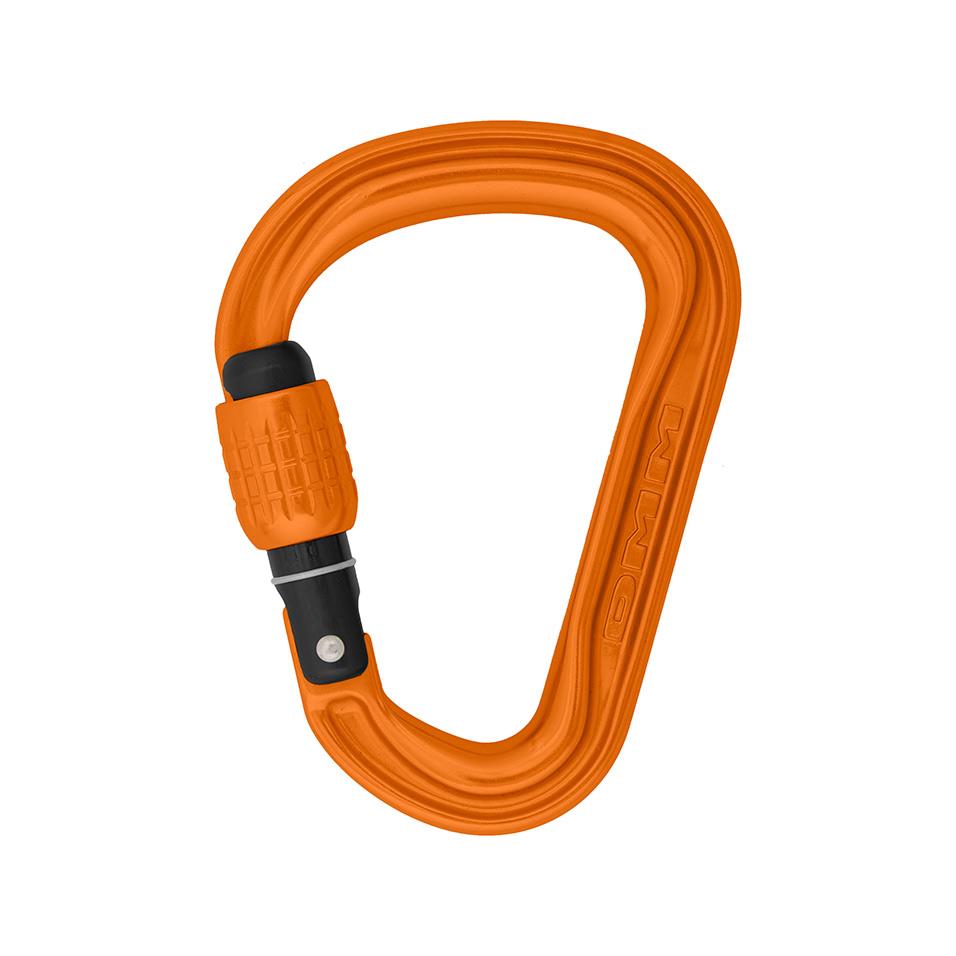

Phantom HMS Screwgate Orange A572OR 71 x 96mm 56g 25kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H
Phantom HMS Screwgate Red A572RD 71 x 96mm 56g 25kN 9kN 7kN 20mm EN362:2004 B
EN12275:2013 B/H
