Wallnuts

Despite their simple appearance, Wallnuts are highly featured pieces of climbing hardware. Different alloy is used for each size - smaller Wallnuts are made from a harder alloy to prevent shearing, while larger sizes are softer so they can bite into placements. Larger Wallnuts feature hollow construction to reduce weight.

Wallnuts can be placed in two different orientations, allowing a single nut to cover a range of cracks. They are tapered across both their face and sides, helping them sit better in cracks that are rarely parallel sided. Grooved faces reduce weight, help the nut seat better in cracks, improve security in shallow placements, and resist lifting out when a leader moves past them.

Wallnuts are mounted on wires that are stiff enough to allow overhead placements, while flexible enough to reduce the chance of lifting out. They are colour coded to correspond with the rest of our protection range, and to give quick and easy selection of the correct size from your harness.

Wallnuts are the basis on which to build a comprehensive climbing rack. Complemented by other, more specialised pieces of protection, they are guaranteed to be the most regularly used piece of protection on your harness.

Product Name Product Code Colour Strength Weight Range Certification Price
Wallnut No.1 - A1611A
A1611A Purple 7kN 15g 6.7 / 14.3mm EN 12270:2013
£10.99

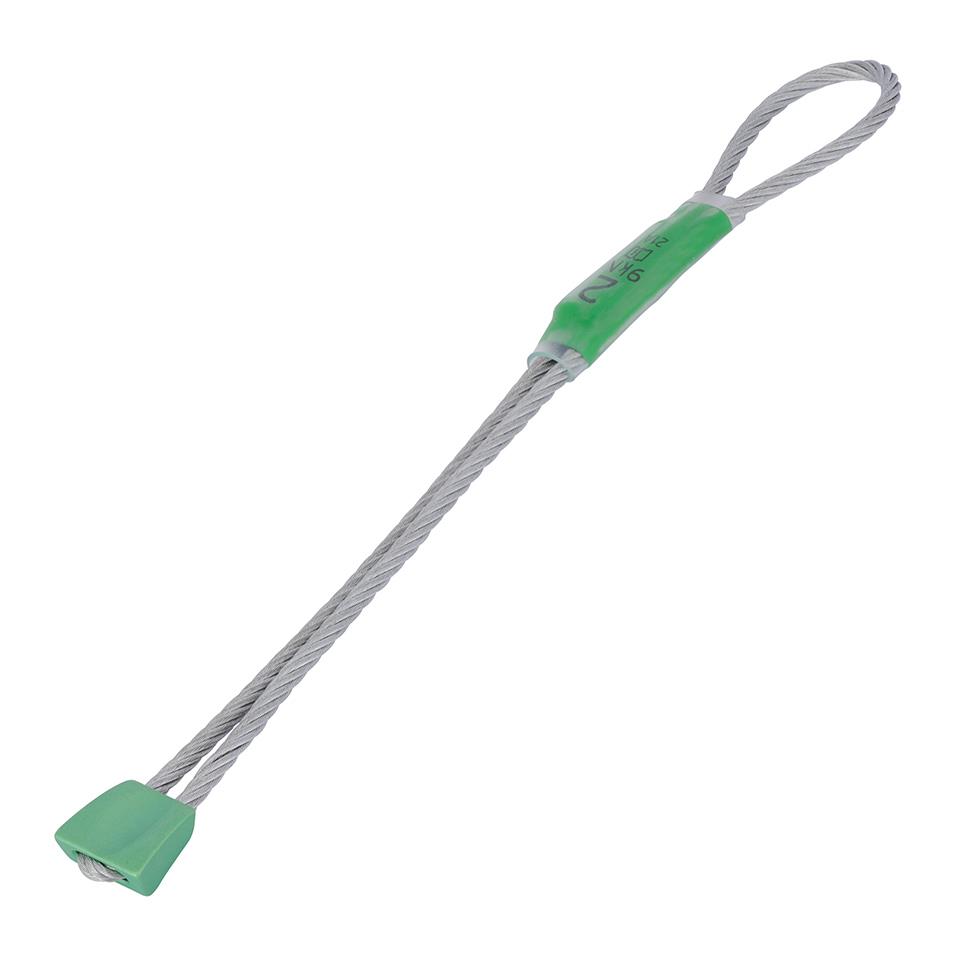

Wallnut No.2 - A1612A
A1612A Green 9kN 26g 8.1 / 15.8mm EN 12270:2013
£10.99

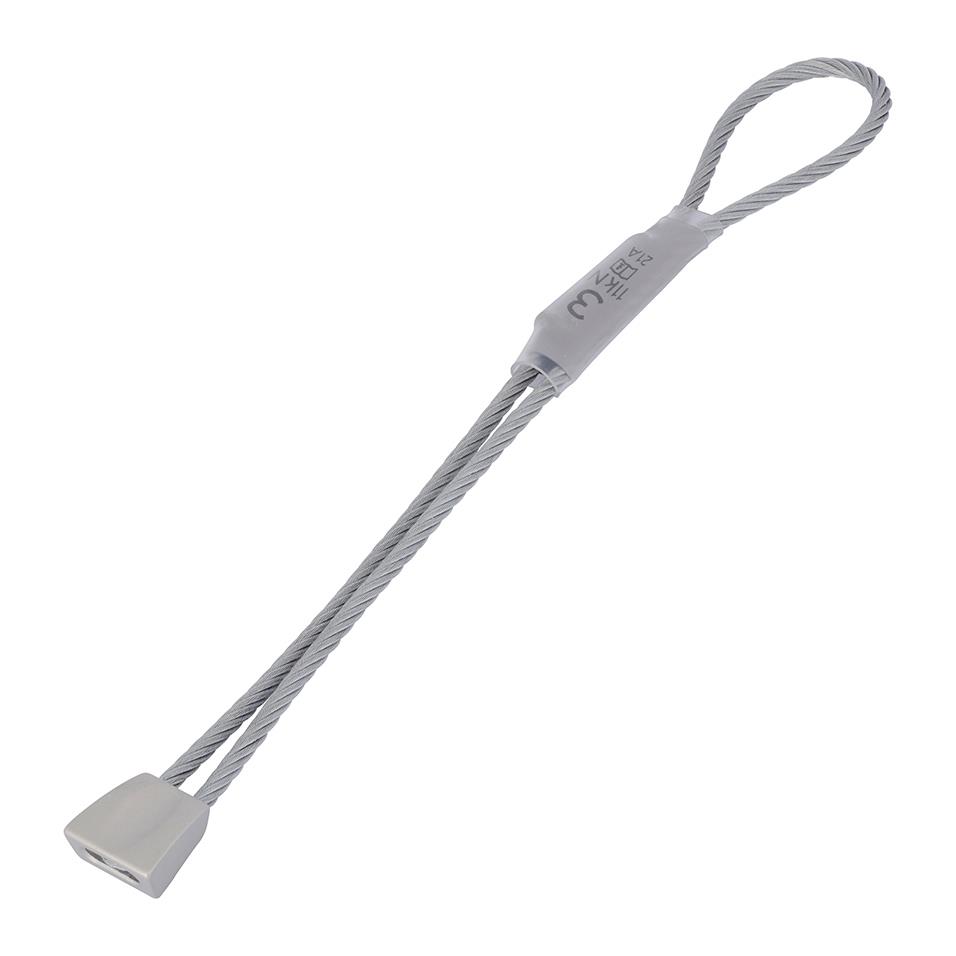

Wallnut No.3 - A1613A
A1613A Silver 11kN 28g 9.4 / 16.5mm EN 12270:2013
£10.99

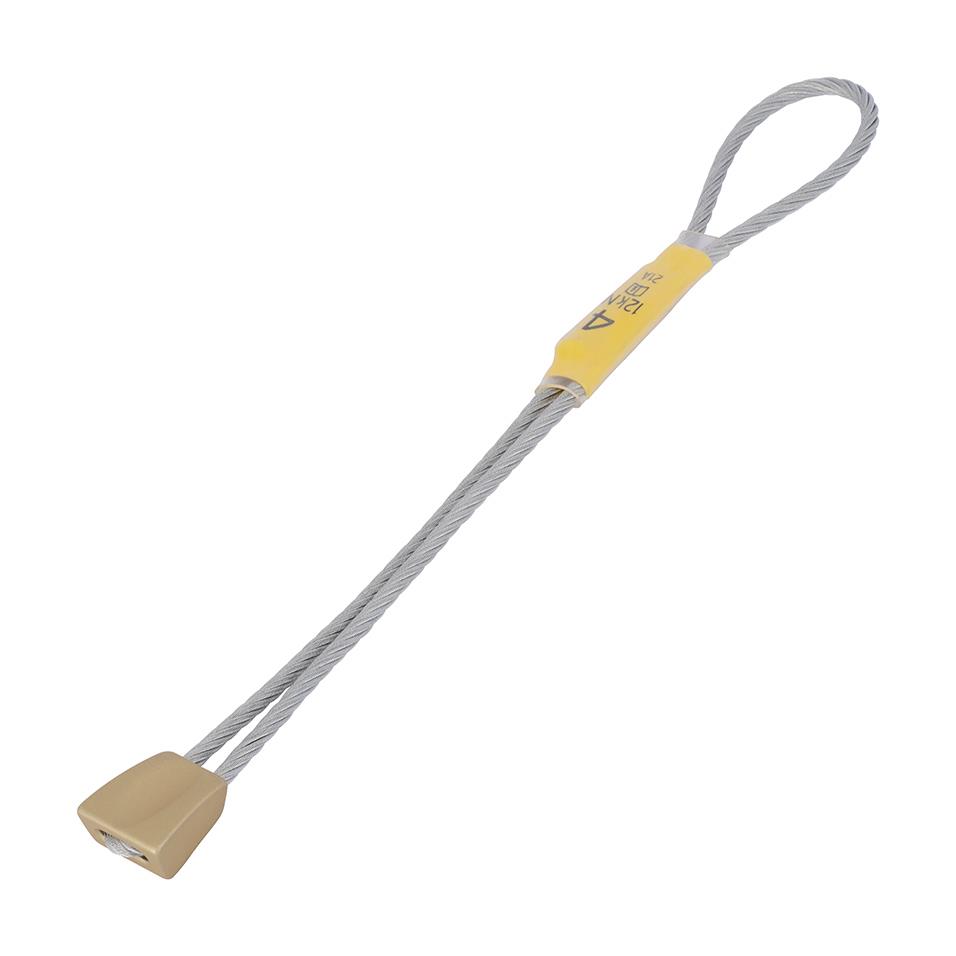

Wallnut No.4 - A1614A
A1614A Gold 12kN 30g 11.0 / 17.6mm EN 12270:2013
£10.99

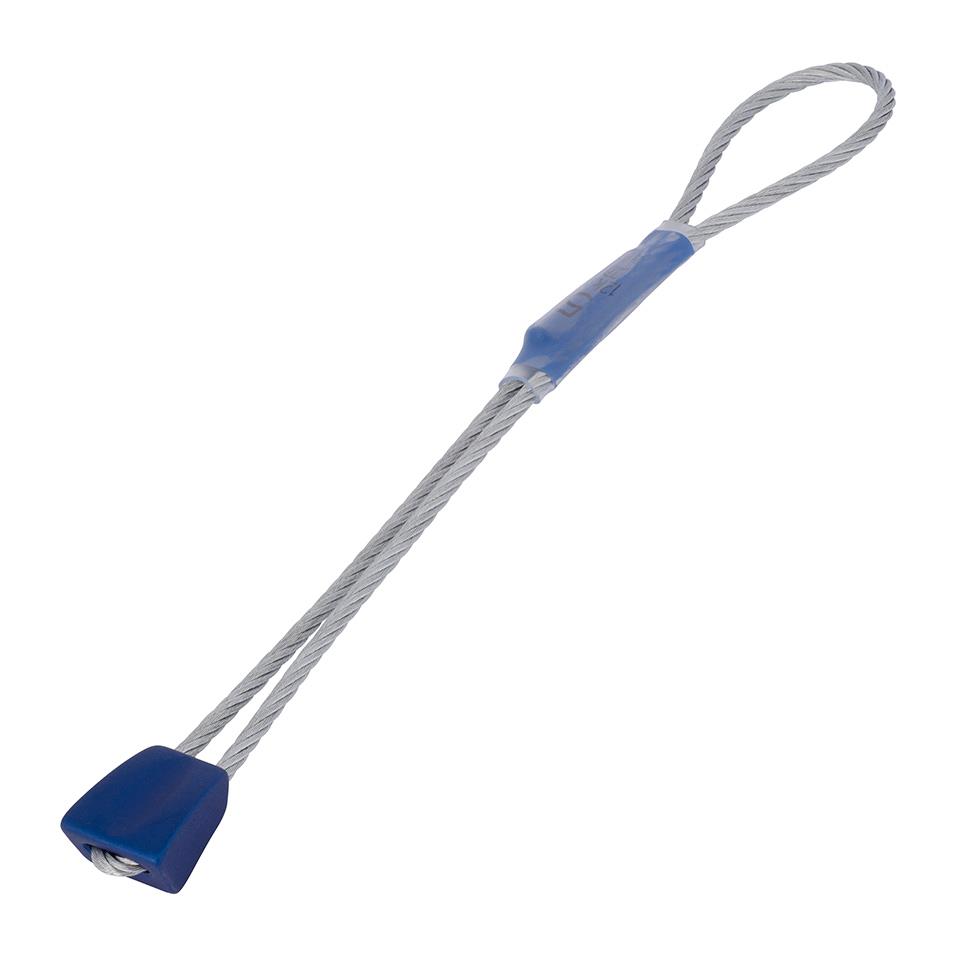

Wallnut No.5 - A1615A
A1615A Blue 12kN 32g 13.2 / 19.4mm EN 12270:2013
£10.99

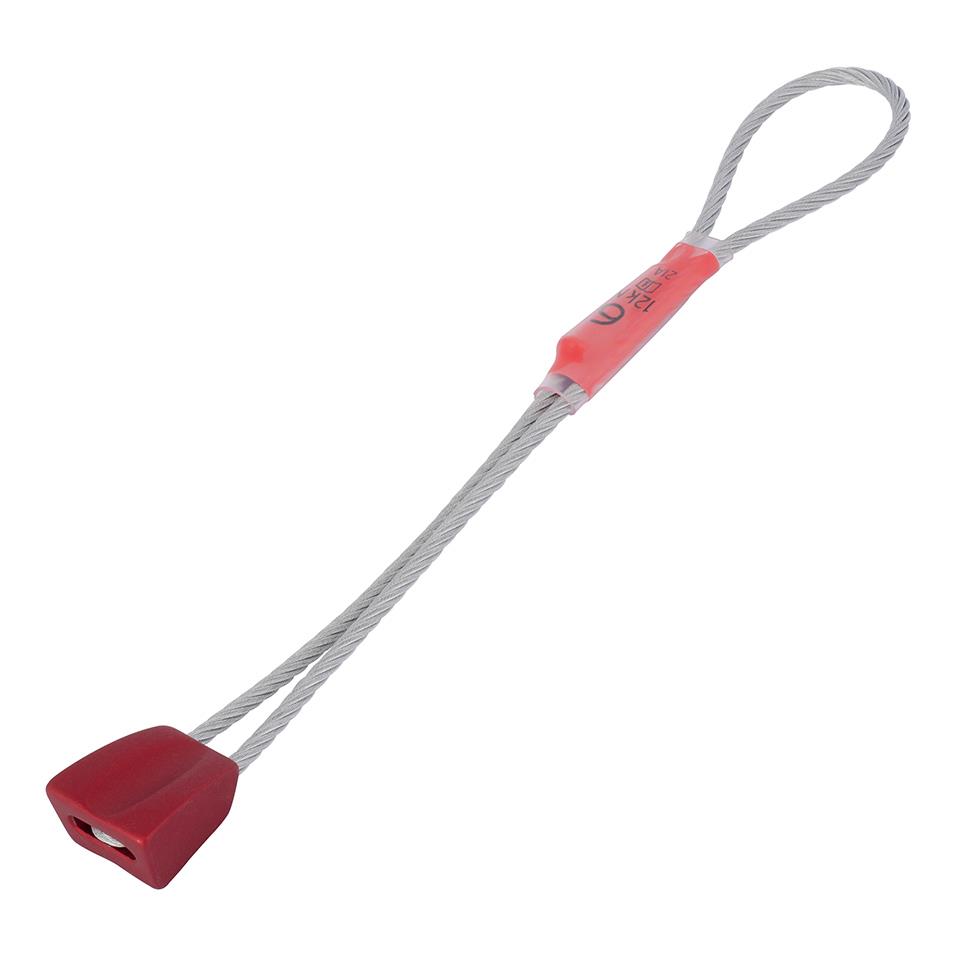

Wallnut No.6 - A1616A
A1616A Red 12kN 39g 15.6 / 22.6mm EN 12270:2013
£10.99

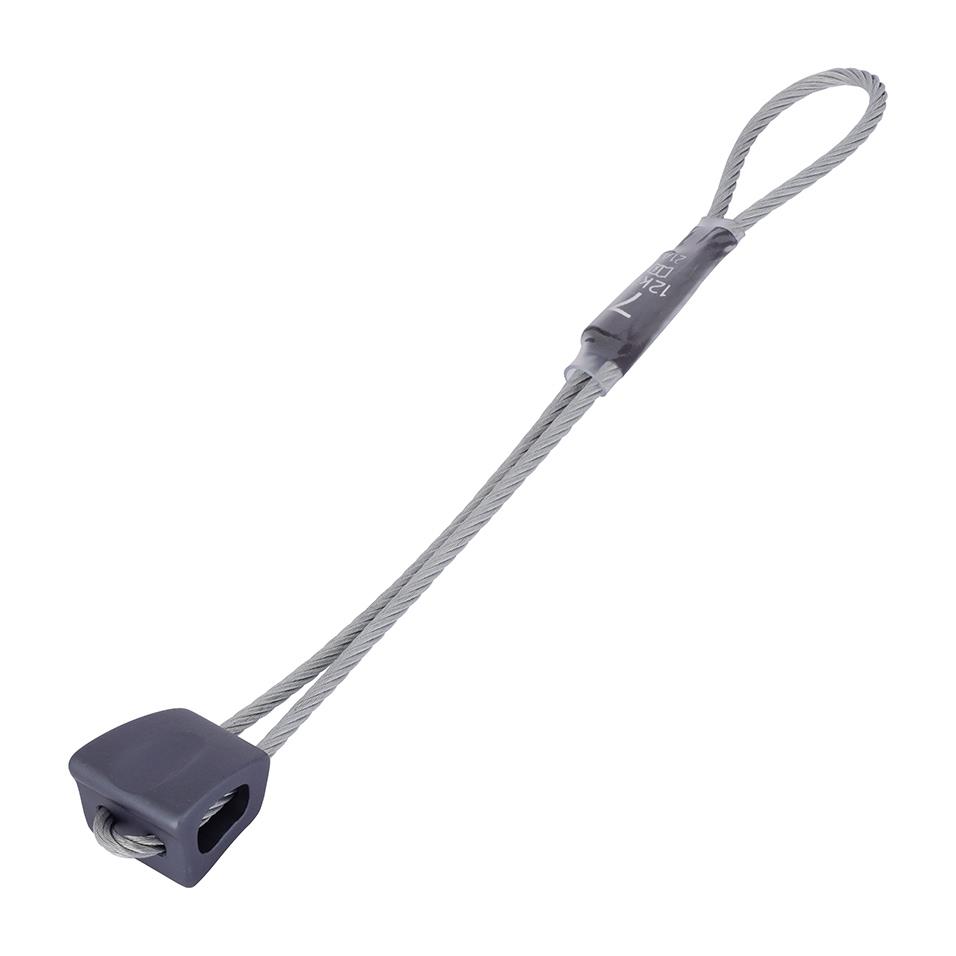

Wallnut No.7 - A1617A
A1617A Grey 12kN 40g 18.9 / 25.8mm EN 12270:2013
£11.50

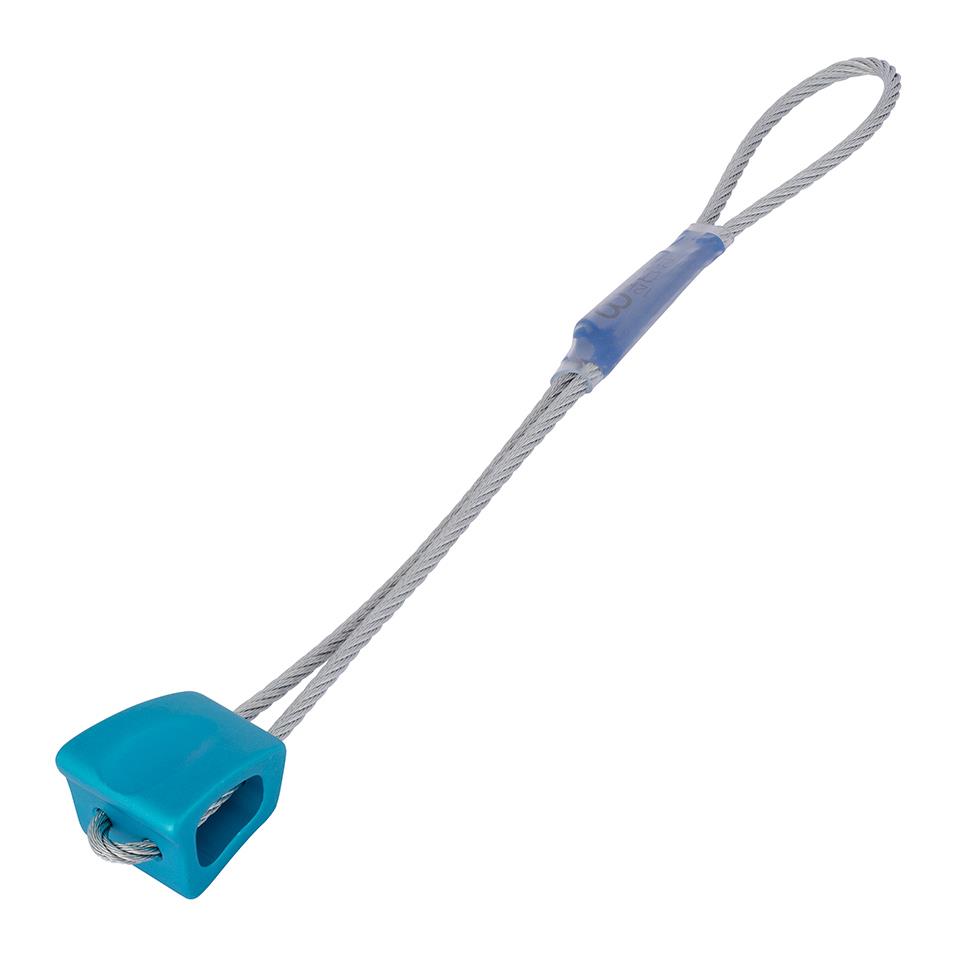

Wallnut No.8 - A1618A
A1618A Turquoise 12kN 45g 22.3 / 29.0mm EN 12270:2013
£11.50

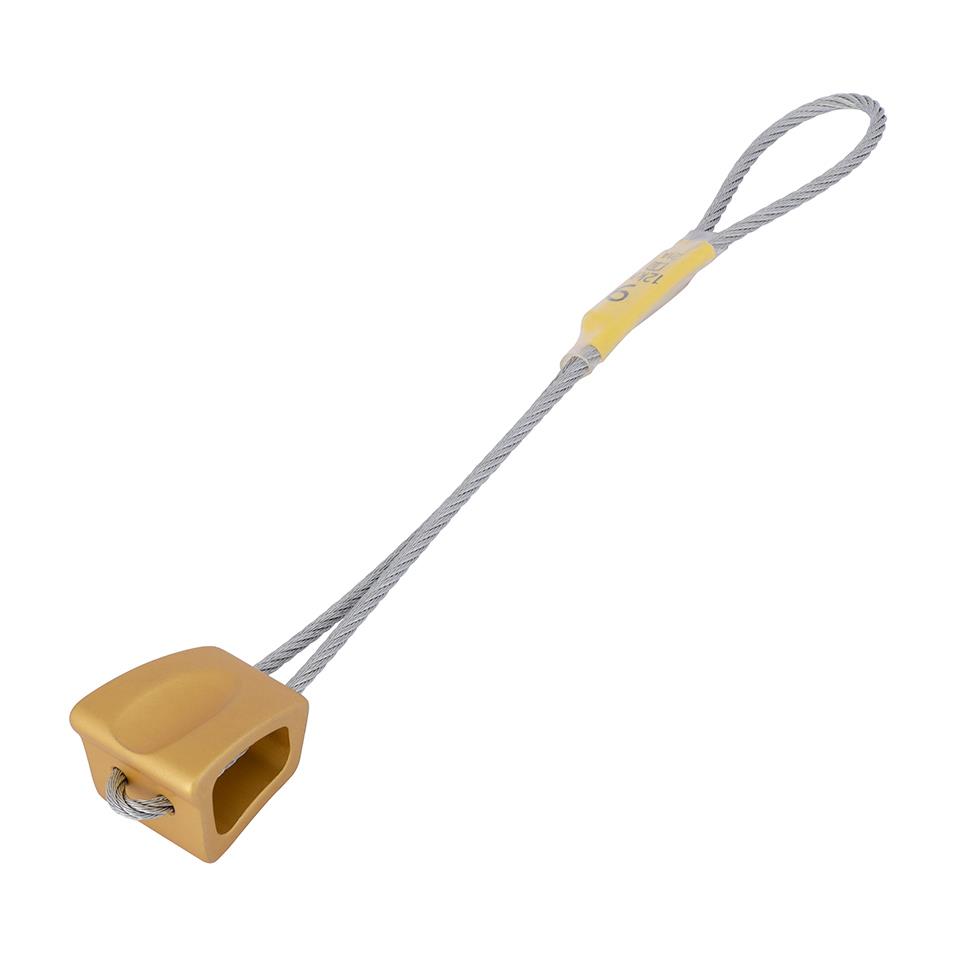

Wallnut No.9 - A1619A
A1619A Gold 12kN 50g 25.2 / 32.1mm EN 12270:2013
£11.99

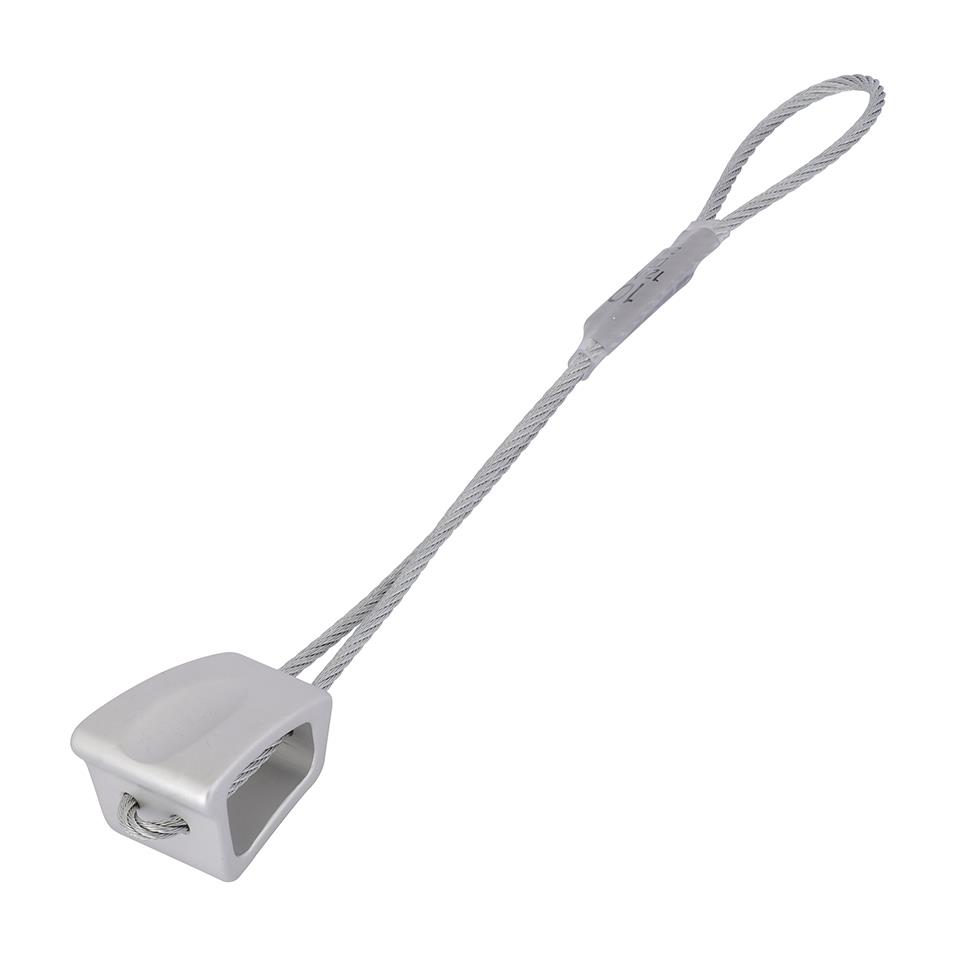

Wallnut No.10 - A1620A
A1620A Silver 12kN 56g 28.8 / 32.6mm EN 12270:2013
£11.99

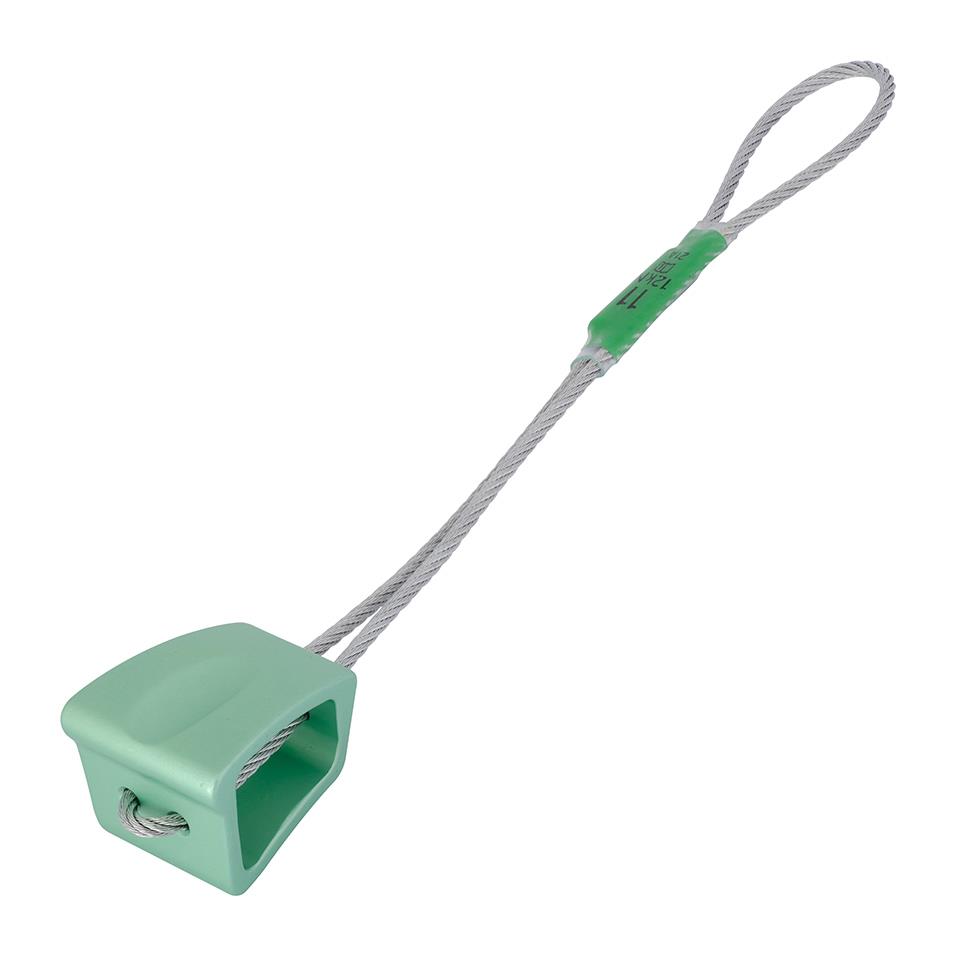

Wallnut No.11 - A1621A
A1621A Green 12kN 68g 33.1 / 37.4mm EN 12270:2013
£11.99

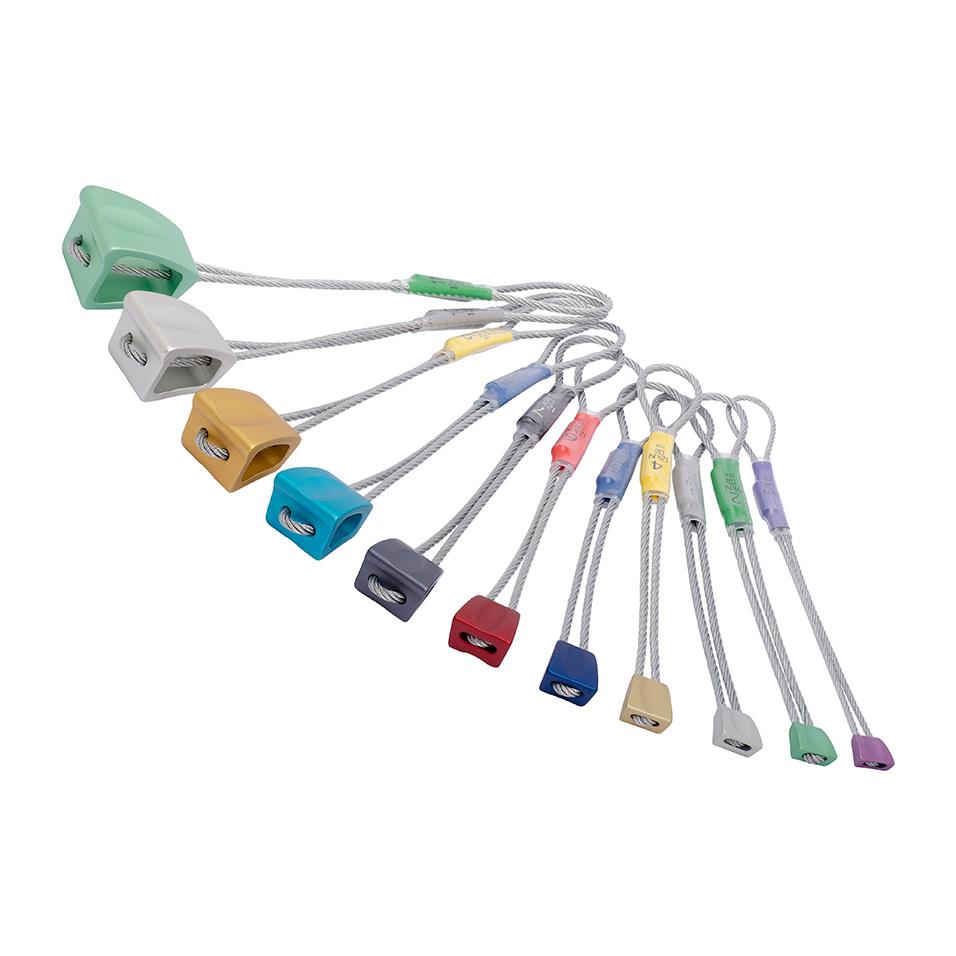

Wallnut Set 1-11 - A1611/21A
A1611/21A Assorted 7 - 12kN 429g 6.7 - 37.4mm EN 12270:2013
£99.99
Wallnut Set 1-6 - A1611/16A
A1611/16A Assorted 7 - 12kN 170g 6.7 - 22.6mm EN 12270:2013
£57.50

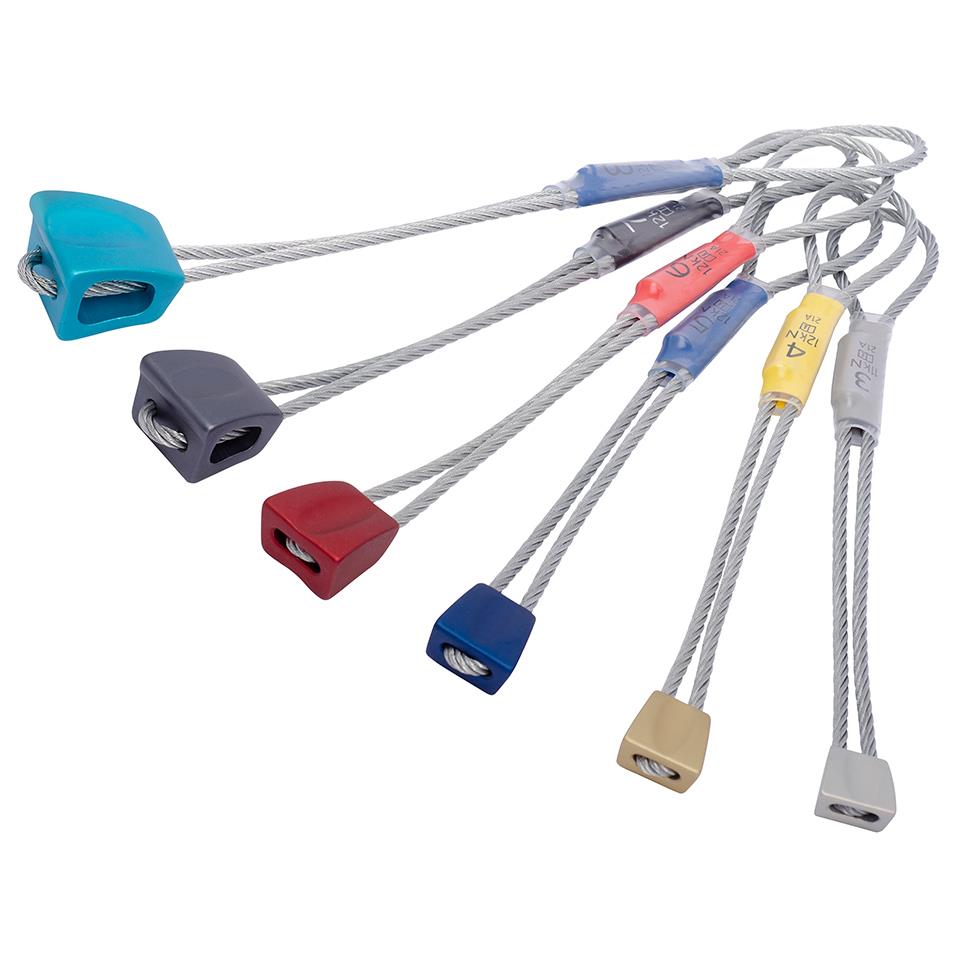

Wallnut Set 3-8 - A1613/18A
A1613/18A Assorted 11 - 12kN 214g 9.4 - 29mm EN 12270:2013
£57.50

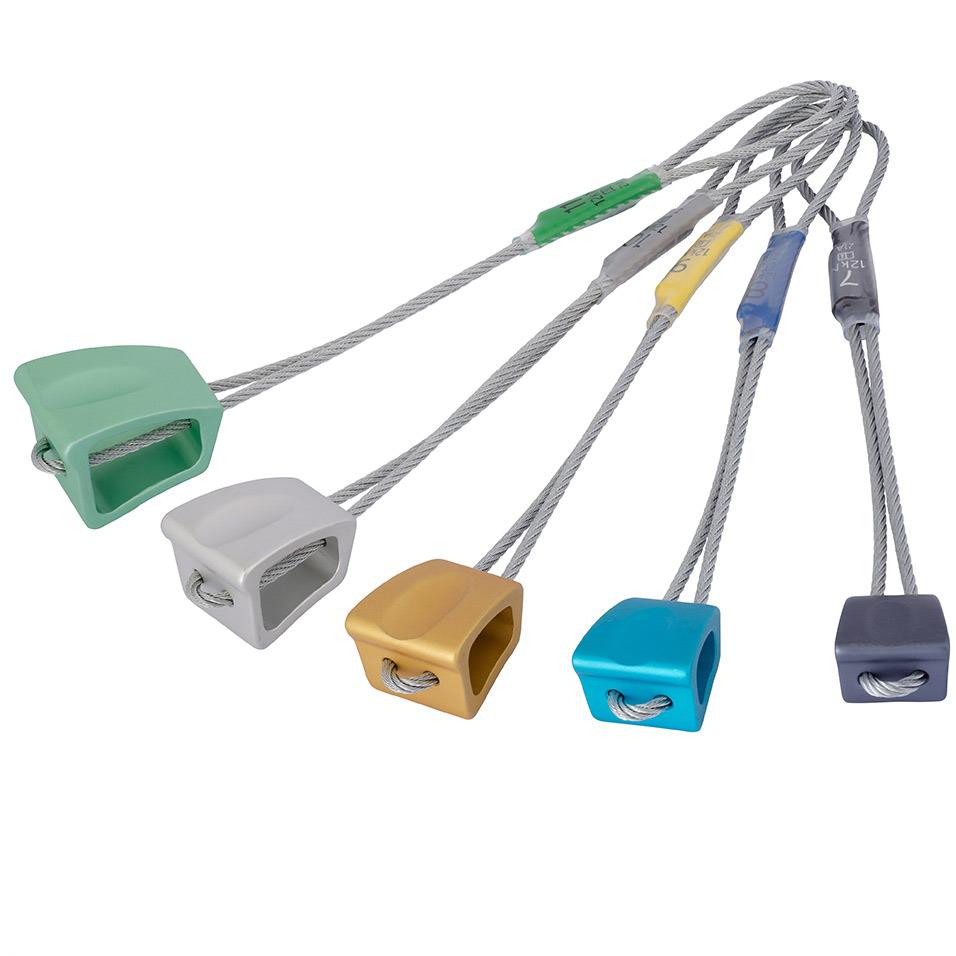

Wallnut Set 7-11 - A1617/21A
A1617/21A Assorted 12kN 259g 18.9 - 37.4mm EN 12270:2013
£52.50

Curved taper gives stable placements and resists lifting out

A Wallnut's curving taper fits a wide variety of cracks in different rock types. Their design creates three points of contact between the nut and rock in a placement, giving stable placements that resist lifting out.

Allows placement in two orientations for increased versatility

Passive protection can be placed either side or face on, doubling the number of cracks any single piece can protect.

Grooved faces improve security in irregular rock

Wallnuts and Offsets have a groove machined into their faces, allowing them to sit better in irregular placements and on highly featured rock. This makes them more versatile across different rock types.

Colour coded for easy size identification

The DMM protection range is colour coded for quick and easy size selection. Colours are co-ordinated across passive and active protection, for quick selection of alternatives if your first choice doesn't fit.
