Bat Plates

DMM Bat Plates raise the bar in design, performance and strength. Precision machining and heat treatment make them strong, light and incredibly versatile.

The Bat shape minimises height loss in complex rigging scenarios and generous radii allow direct attachment of textiles as well as connectors. The oversized central hole allows for effortless centralising of connections and gives a perfect technician clipping point.

Product Name Product Code Colour MBS WLL Dimensions Weight Certification Price

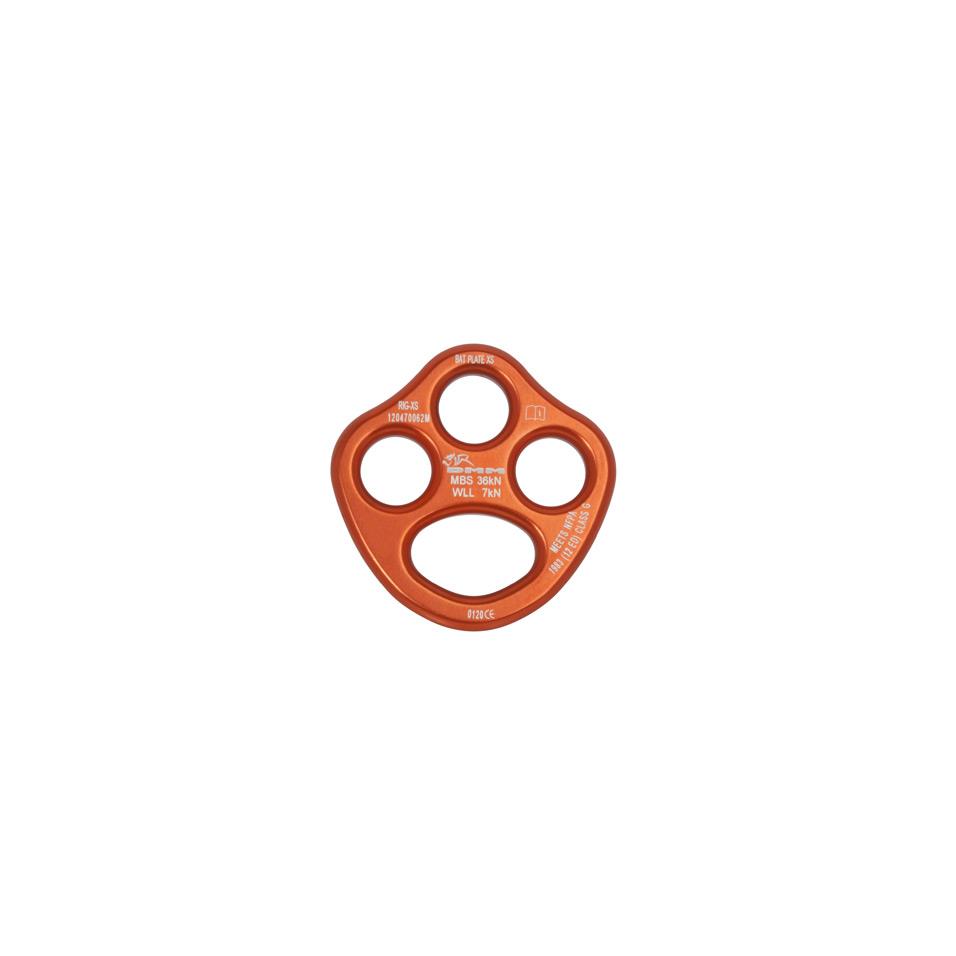

Bat Plate XS - RIG-XS-OR
RIG-XS-OR Orange 36kN 7kN 62 x 62 x 8mm 37g Manufacturers Technical Specification QAP99 (CE)
£27.50
Bat Plate Small - RIG-S-RD
RIG-S-RD Red 60kN 12kN 129 x 95 x 10mm 159g Manufacturers Technical Specification QAP99 (CE)
£44.99

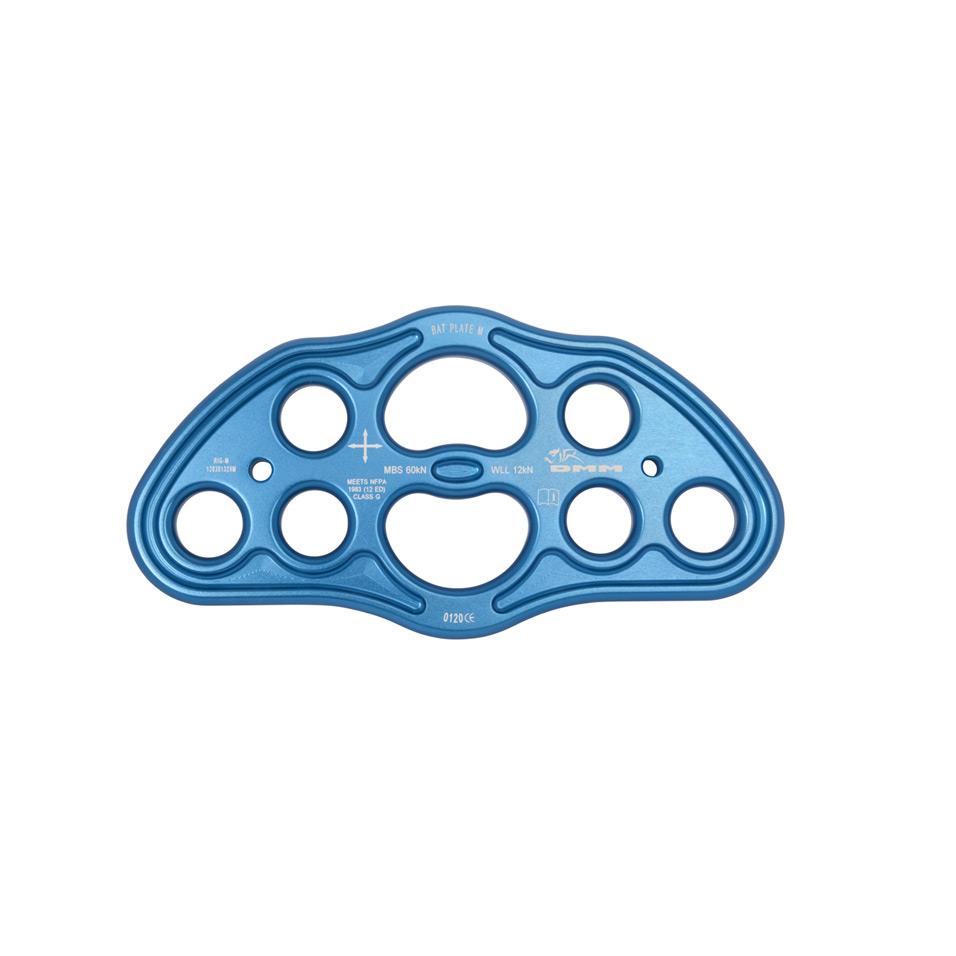

Bat Plate Medium - RIG-M-BL
RIG-M-BL Blue 60kN 12kN 189 x 97 x 10mm 247g Manufacturers Technical Specification QAP99 (CE)
£59.99
Bat Plate Large - RIG-L-GD
RIG-L-GD Gold 60kN 12kN 249 x 99 x 10mm 322g Manufacturers Technical Specification QAP99 (CE)
£74.99

Four sizes for all rigging configurations

Textile friendly surfaces with large radii

Centralised connection point for stable rescuer attachment

Can be bolted together for '100% redundancy' in system

CNC machined from high strength heat treated Aluminium

Conforms to NFPA 1983 (2012 Ed) Class G
