Dragonfly Micro Cams

Dragonfly Micro Cams provide versatile protection for narrow cracks and pockets. The size 1 Dragonfly is our smallest certified climbing cam. The six cams in the range cover placements from 7.8mm – 28.3mm.

The same camming angle of 13.75°, as used with our Dragons, provides the optimum balance of holding power and range. You will appreciate the holding power of the TripleGrip lobes with their ‘raw alu’ surface, particularly on smooth rock types such as slate and limestone. The narrow head width and compact trigger allow the cams to be placed deep in small pockets.

Product Name Product Code Colour Active Strength Passive Strength Weight Range Certification Price

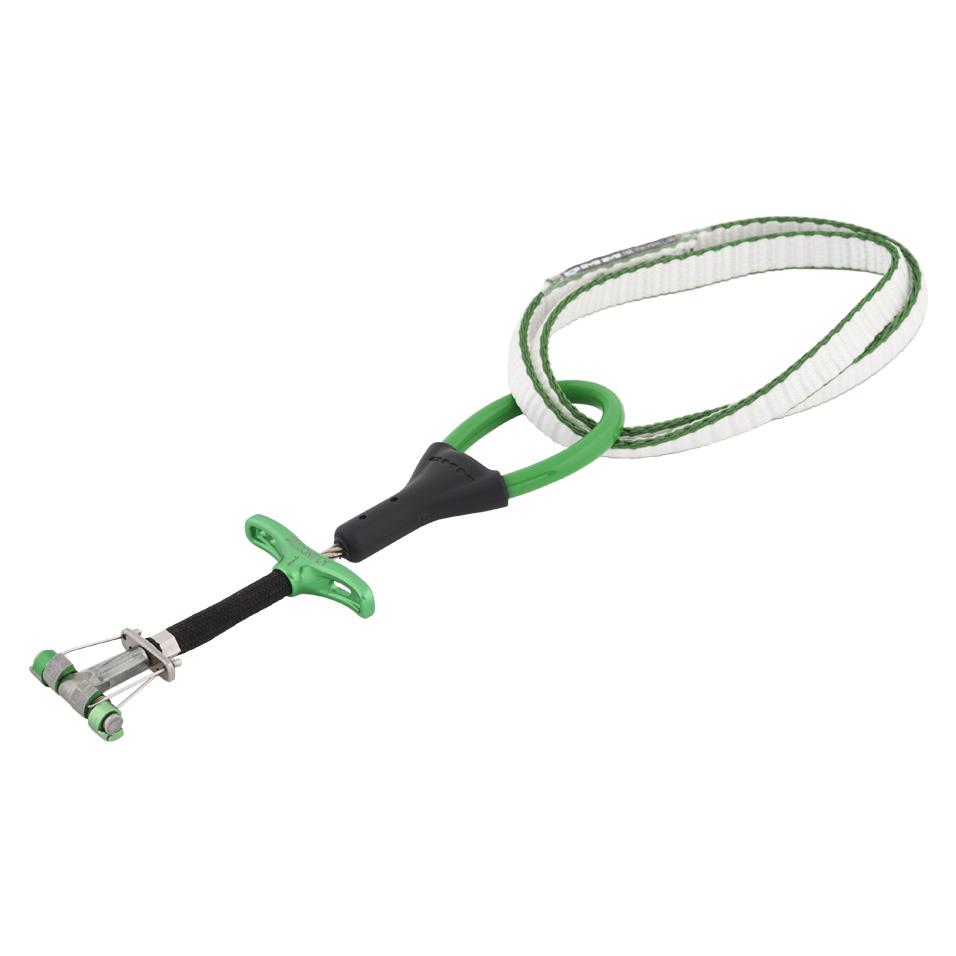

Dragonfly 1 - A7551A
A7551A Green 6kN n/a 55g 7.8-11mm EN 12276:2013
£66.99

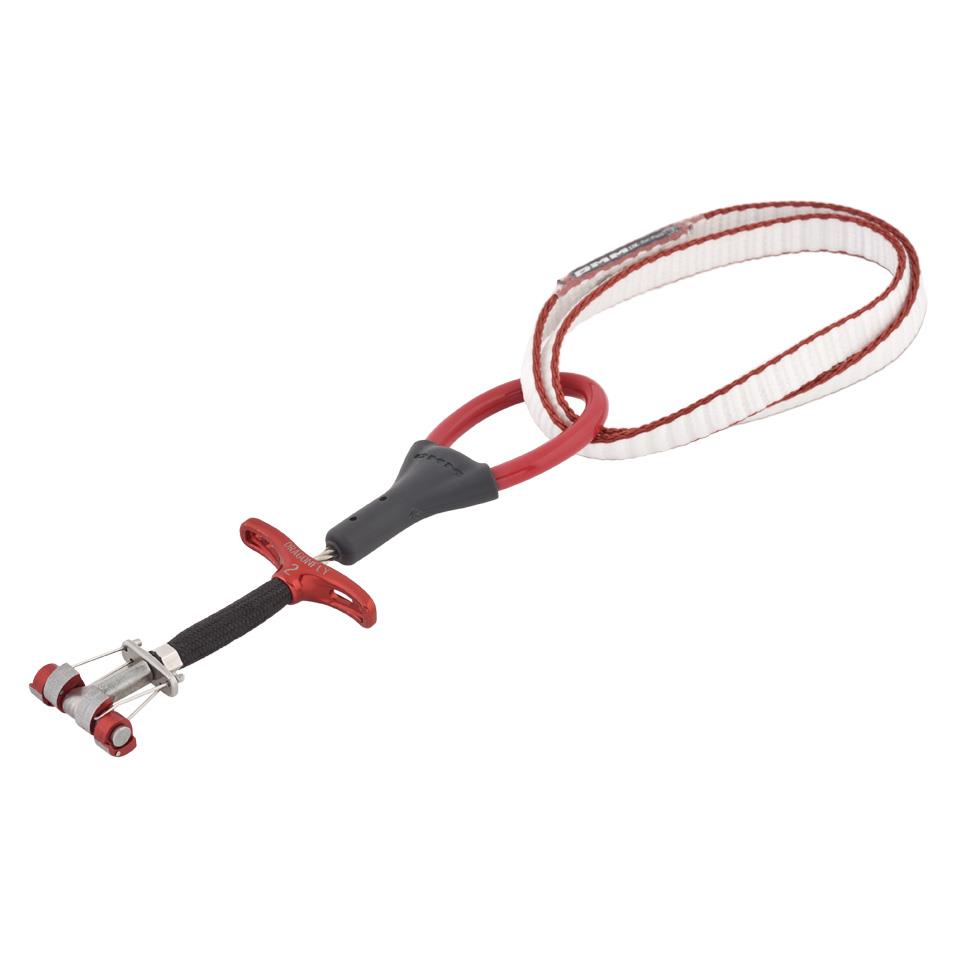

Dragonfly 2 - A7552A
A7552A Red 6kN n/a 56g 8.7-12.9mm EN 12276:2013
£66.99

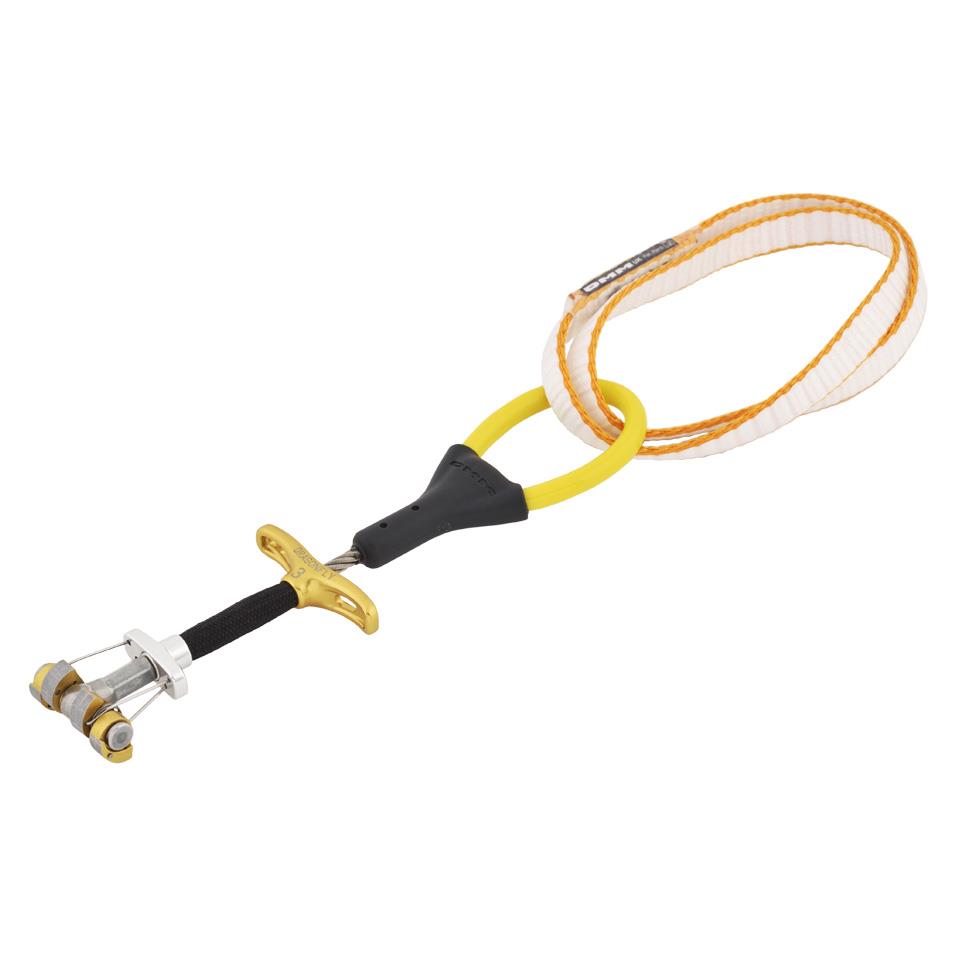

Dragonfly 3 - A7553A
A7553A Gold 8kN n/a 65g 10.2-15.2mm EN 12276:2013
£66.99

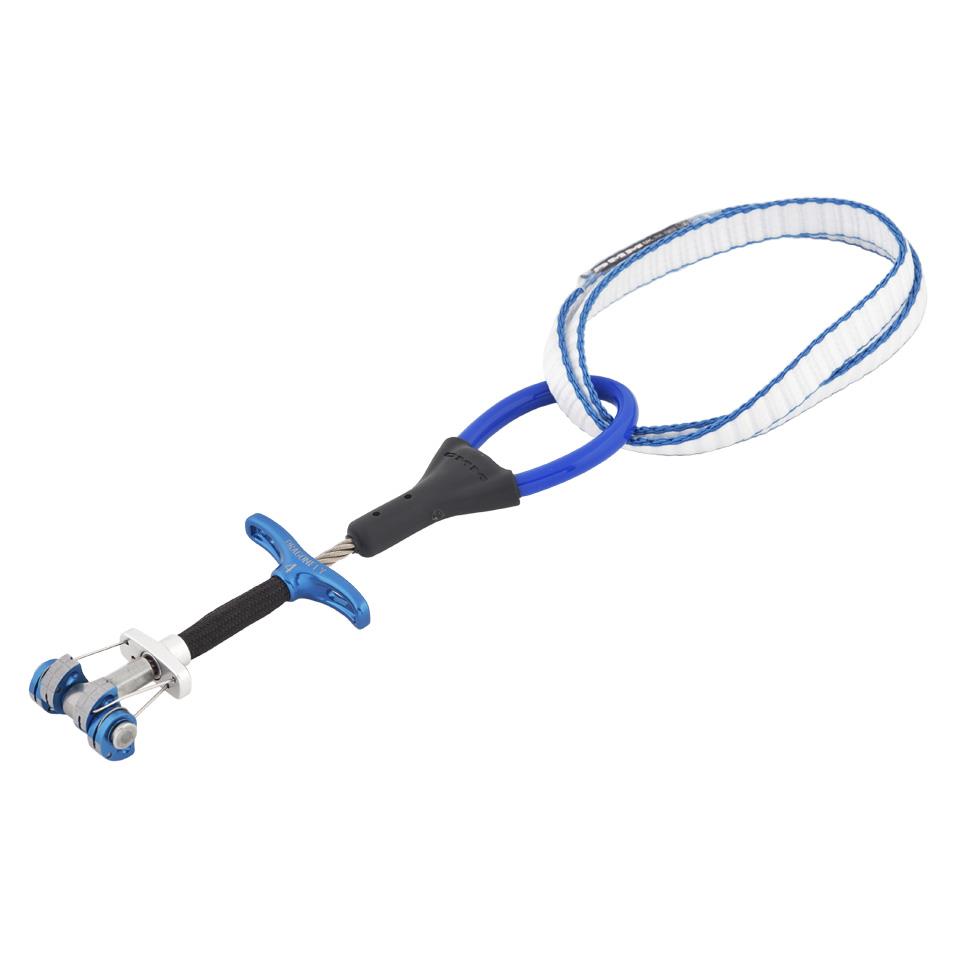

Dragonfly 4 - A7554A
A7554A Blue 8kN n/a 67g 12.1-17.9mm EN 12276:2013
£67.99

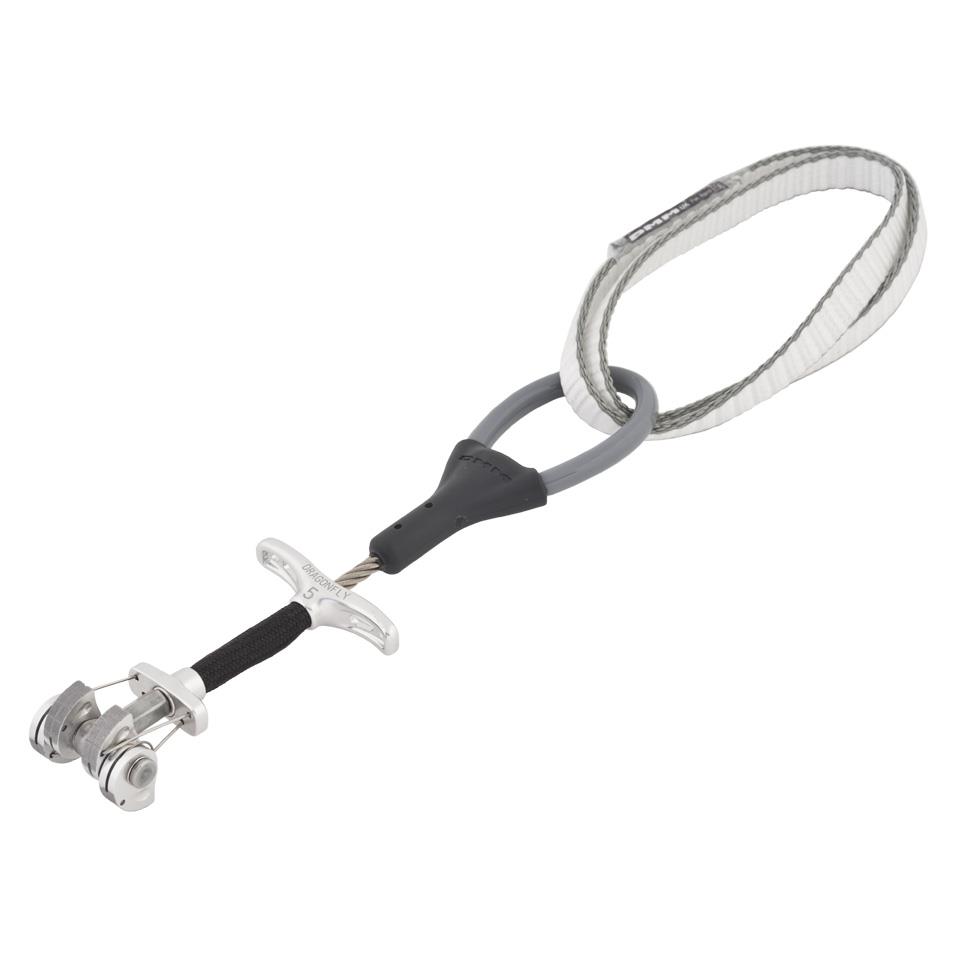

Dragonfly 5 - A7555A
A7555A Silver 9kN n/a 70g 15.1-22.5mm EN 12276:2013
£67.99

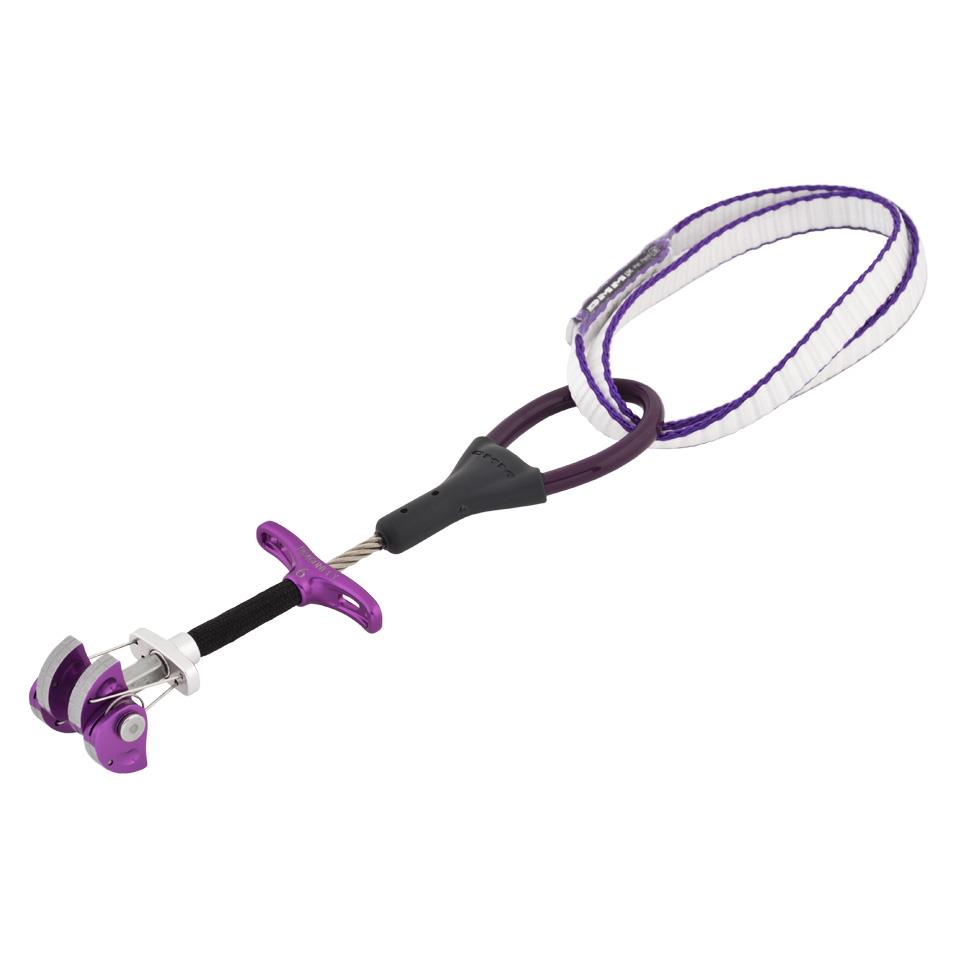

Dragonfly 6 - A7556A
A7556A Purple 9kN n/a 73g 19-28.3mm EN 12276:2013
£67.99

13.75° camming angle

Optimum combination of holding power and range.

TripleGrip lobes with ‘raw alu’ surface

Increases coefficient of friction meaning cam is more likely to hold on smooth rock types. TripleGrip gives greater surface texture interaction and makes the cam less likely to walk and perform better in flared cracks.

Flexible stem cable

Minimises walking

Narrow head width

Helps with small pocket placements

Compact trigger bar

Allows deep placements

Extendable 11mm Dynatec sling with compact stitch pattern

Extend either strand and save using a quickdraw

Complement smaller Dragon Cams

Sizes 4, 5, and 6 Dragonfly Cams overlap with size 00 – 1 Dragons
