Impact Blocks


3 reviews

Designed to make an impact.

Designed for use in any industry where loads may be dropped onto rigging with considerable impact forces. The combination of high quality materials and advanced production processes has ensured a rope friendly, durable, robust block that looks amazing and performs even better. Lightweight in mass but not strength, our Impact Blocks have passed incredible dynamic, torsion and static tests - a true testament to their strength to weight ratio.

The next generation Impact Block XS incorporates a number of additional features. The interlocking anchor bollard is a unique design and doubles security. Oversized ball bearings reduce friction and wear, promoting great efficiency. Designed to combine lightweight and compact with high performance, the Impact Block XS will become your best friend for redirect rigging, winching and snatching stem wood. In addition to highly evolved fairlead flares, the sheave is integrated with the side plates to ensure seamless transitions for your rigging line, while the all-new hollow axle design facilitates complex rigging configurations and allows for maintenance such as servicing of the bearings or replacement of the sheave (hollow axle max. rope diameter, XS: 10mm, L: 20mm). Validated for long term use in the toughest of environments with the most demanding of operators, robustness and resilience are already proven.


  • Compact, lightweight and highly efficient
  • Double security at the anchor bollard – interlocking bollard features and threaded axle
  • Large sheave diameter and efficient bearings make this block ideal for both everyday rigging and winch operations (e.g. with capstan winches)
  • Hollow axle on XS (10mm diameter) and L (20mm diameter) allows for a rope or sling additional applications
  • Hauling loop simplifies hauling, transfer and storage
  • Highly evolved fairlead flares help maintain efficiency even in suboptimal set ups
  • Serviceable by manufacturer e.g. bearing replacement
  • Patents Pending

Tech Specs

Product Name Product Code Colour MBS WLL Dimensions Weight Rope Diameter Certification

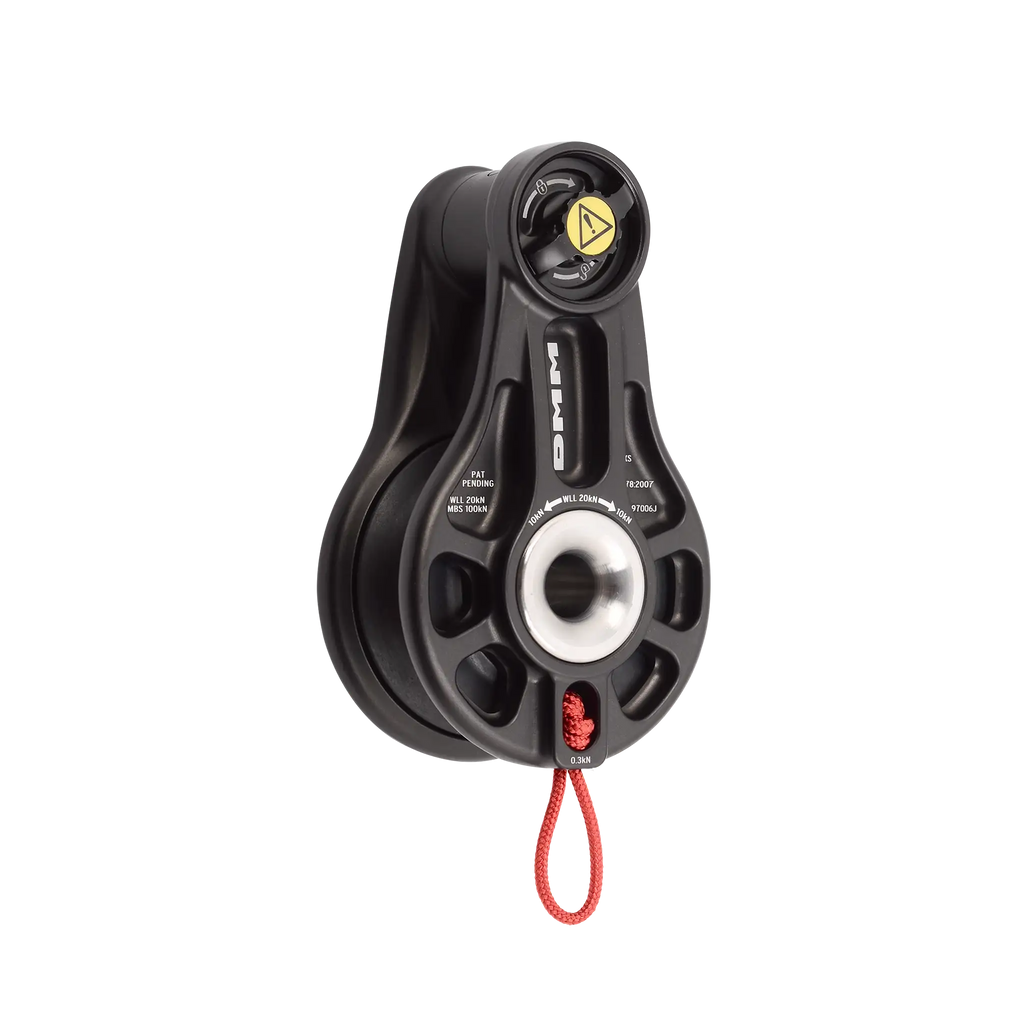

Impact Blocks XS Green IMB-XSGR Green/Silver 100kN 20kN 140 x 82 x 60mm 780g 16mm Max EN12278:2007
Impact Blocks XS Matt Grey IMB-XSMG Matt Grey 100kN 20kN 140 x 82 x 60mm 780g 16mm Max EN12278:2007
Impact Blocks S Titanium/Green IMB-S Titanium/Green 200kN 40kN 180 x 100 x 70mm 1860g 16mm Max EN12278:2007

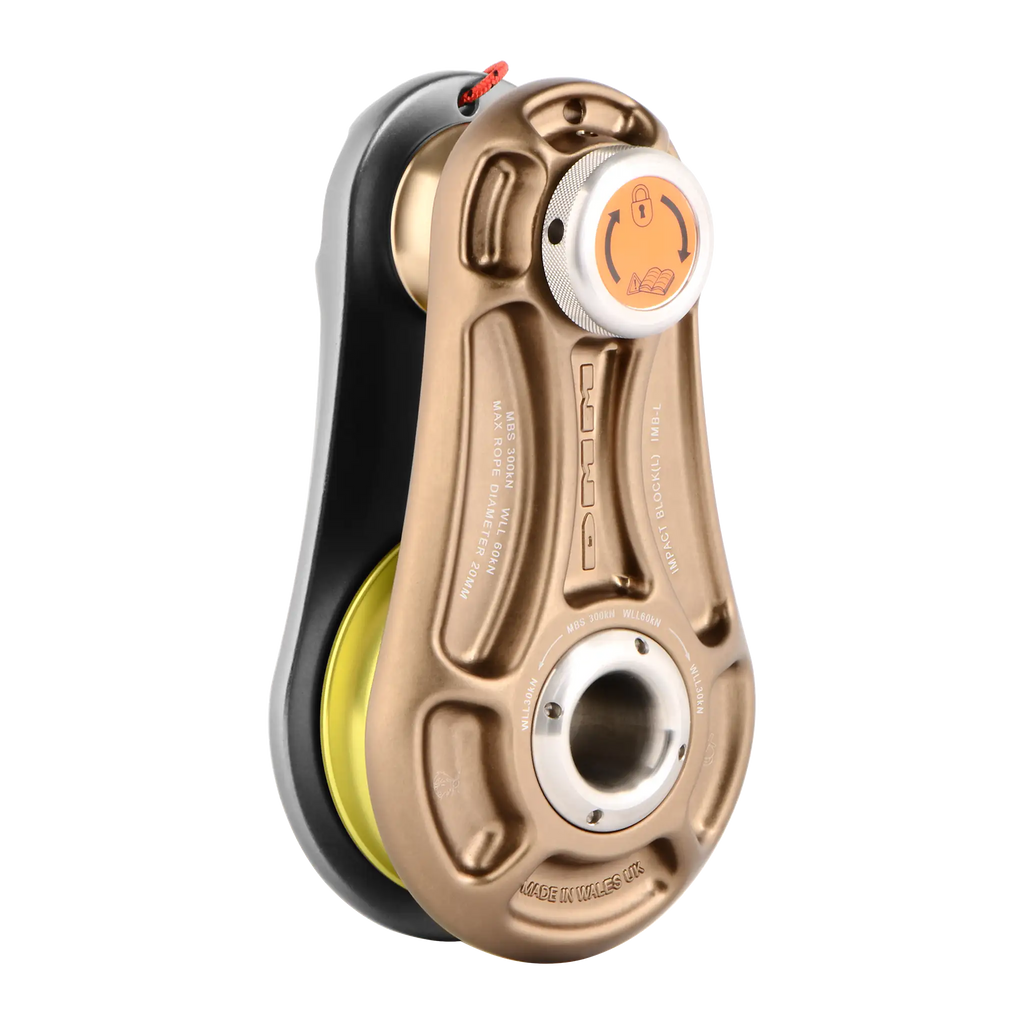

Impact Blocks L Bronze/Lime IMB-L Bronze/Lime 300kN 60kN 230 x 125 x 90mm 3470g 20mm Max EN12278:2007
