Impel

Pre-release information.
Shipping August 2024.

Lightweight, strong and compact pulley. Read more
Documents

Declaration of Conformity

More details

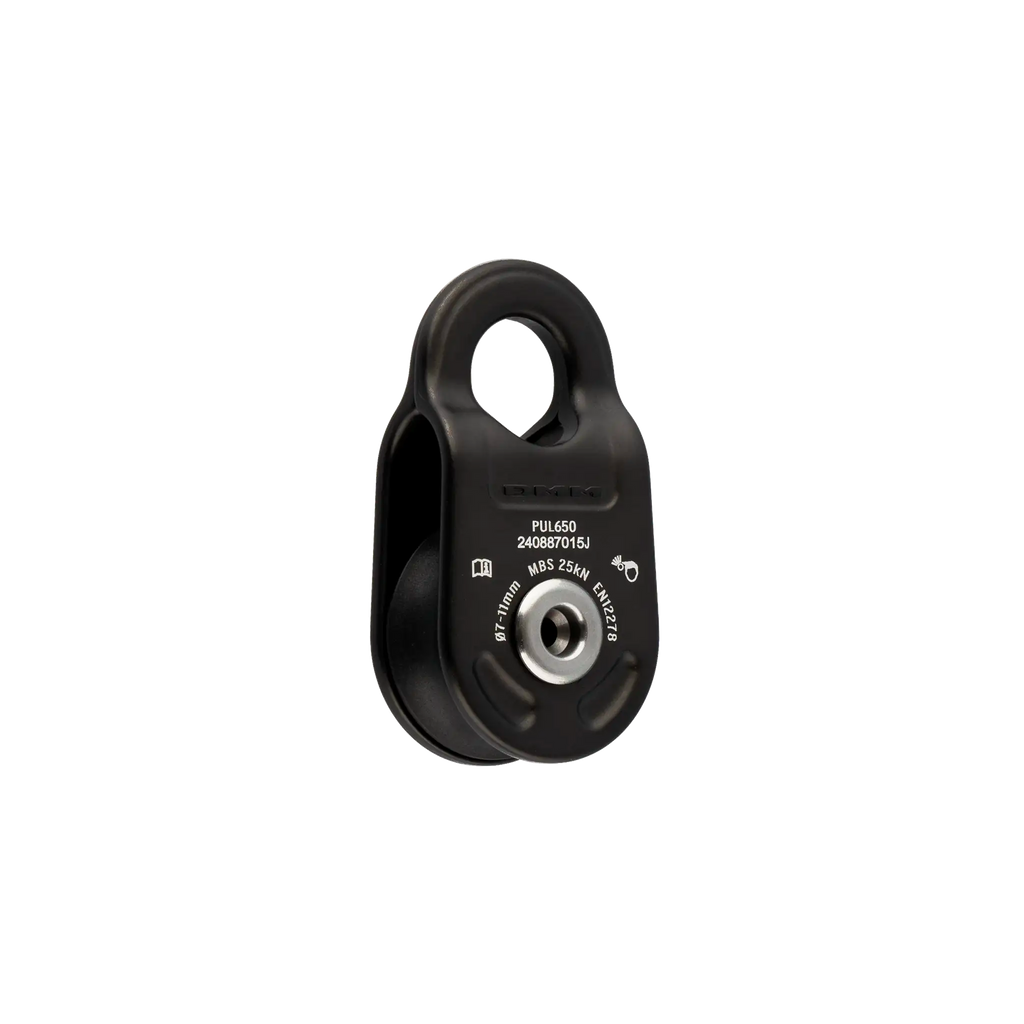

Lightweight, strong and extremely compact, this pulley uses sealed ball bearings for excellent efficiency and smooth hot-forged side plates protect the sheave. It is an ideal pulley to have as part of personal ascent, positioning and in your day-to-day tasks.

The Impel's straight sides means a hitch tends nicely against it when used as part of a lanyard system.

Features

  • Ultra-compact pulley
  • Sealed ball bearings for high efficiency and low maintenance
  • Hot forged smooth fairleads and edges are rope and textile friendly
  • Can connect directly with textile components for extra versatility
  • For use with ropes up to 11mm diameter
  • Lightweight and strong with a 25kN MBS and 5kN WLL
  • Swinging side plates for easy installation

Tech Specs

Product Name Product Code Colour MBS WLL Dimensions Weight Rope Diameter Certification
Impel Red/Grey PUL650 Red/Matt Grey 25kN 5kN 69 x 35 x 24mm 62g 11mm Max EN12278:2007
Impel Matt Grey PUL650MG Matt Grey 25kN 5kN 69 x 35 x 24mm 62g 11mm Max EN12278:2007
×
