Director Swivel Boss

£75.99

Free delivery over £50

1-3 day delivery

Lifetime Guarantee

Documents
More details
In collaboration with Treemagineers

Compact termination carabiners for every application.

The Director Swivel Boss is a compact, swivelling termination connector designed to load in the strongest orientation. Ideal for lanyards, these lightweight, versatile and strong carabiners are easy to handle and can reduce the overall length of a system.

The Director Swivel Boss features a textile friendly, configurable eye, an extra short gate, a generous curve in the loading area and healthy gate openings. They can be retro fitted onto pre-stitched or swaged lanyard components or used in conjunction with DMM Linkits to form super short connectable systems. When used in conjunction with the DMM Director Yoke, it forms the ultimate swivelling, pivoting double connector.

Choose between a D shape or Bow shape shackle depending on attachment requirements.

FEATURES

  • Compact, lightweight and versatile.
  • Designed to ensure major axis loading.
  • "Rhino horn" ensures device remains in loading area.
  • Incorporates DMM's shortest gate.
  • Low overall length well suited to restricted height scenarios.
  • Compatible with existing range of DMM Linkit lightweight rigging components.
  • Patented features.
  • Hot forged and CNC machined.

Locking gate types

Screwgate

Manual locking gate requiring screwing/unscrewing of the barrel to lock/unlock.

Kwiklock

Auto-locking gate requiring two distinct actions to open.

Locksafe

Auto-locking gate requiring three distinct actions to open.

Durolock

Auto-locking gate requiring four distinct operations to open. Force must be maintained throughout or the gate returns to safe (locked).

Kwiklock ANSI

Same gate action as Kwiklock but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Locksafe ANSI

Same gate action as Locksafe but the connector is also required to exceed 16kN in minor axis, side load and gate face tests.

Tech Specs

Product Name Product Code Dimensions Weight MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Gate Opening Certification
Director Swivel Boss Screwgate Bow A642BS 64 x 130mm 98g 25kN N/A 9kN 17mm EN12275:2013 T
EN362:2004 T

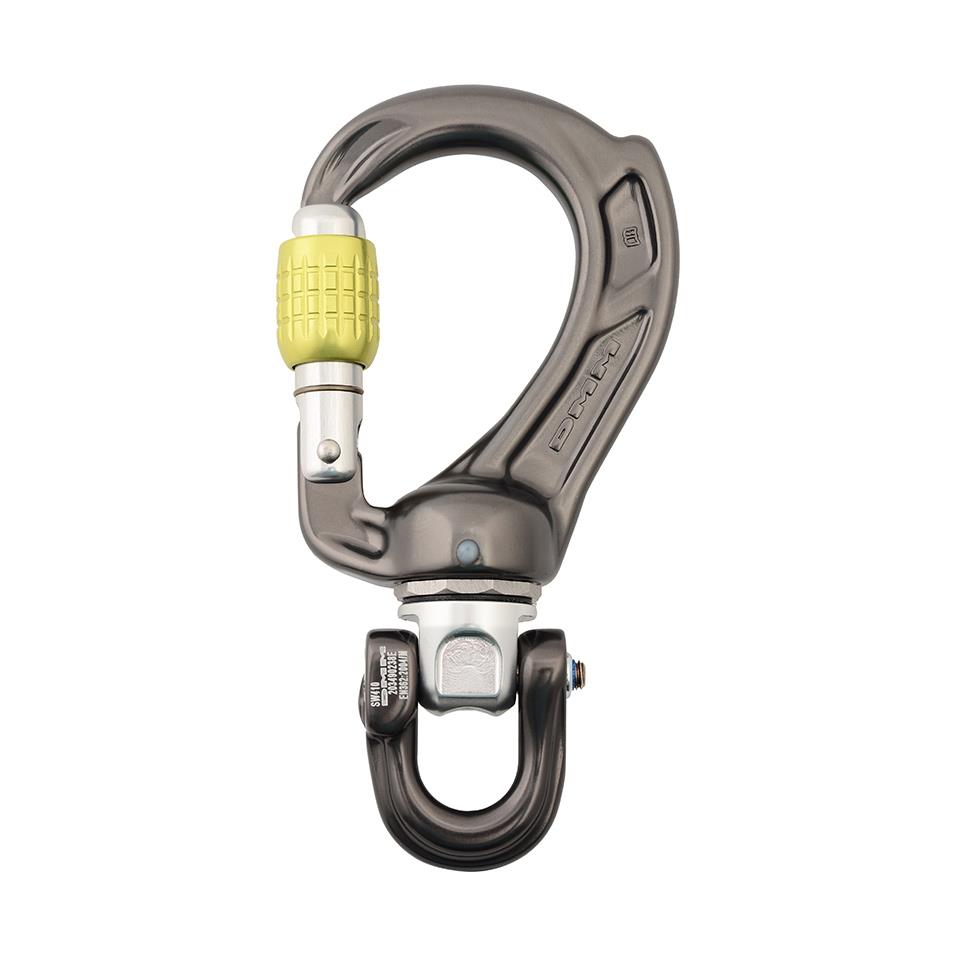

Director Swivel Boss Screwgate D A642SS 64 x 130mm 98g 26kN N/A 9kN 17mm EN12275:2013 T
EN362:2004 T

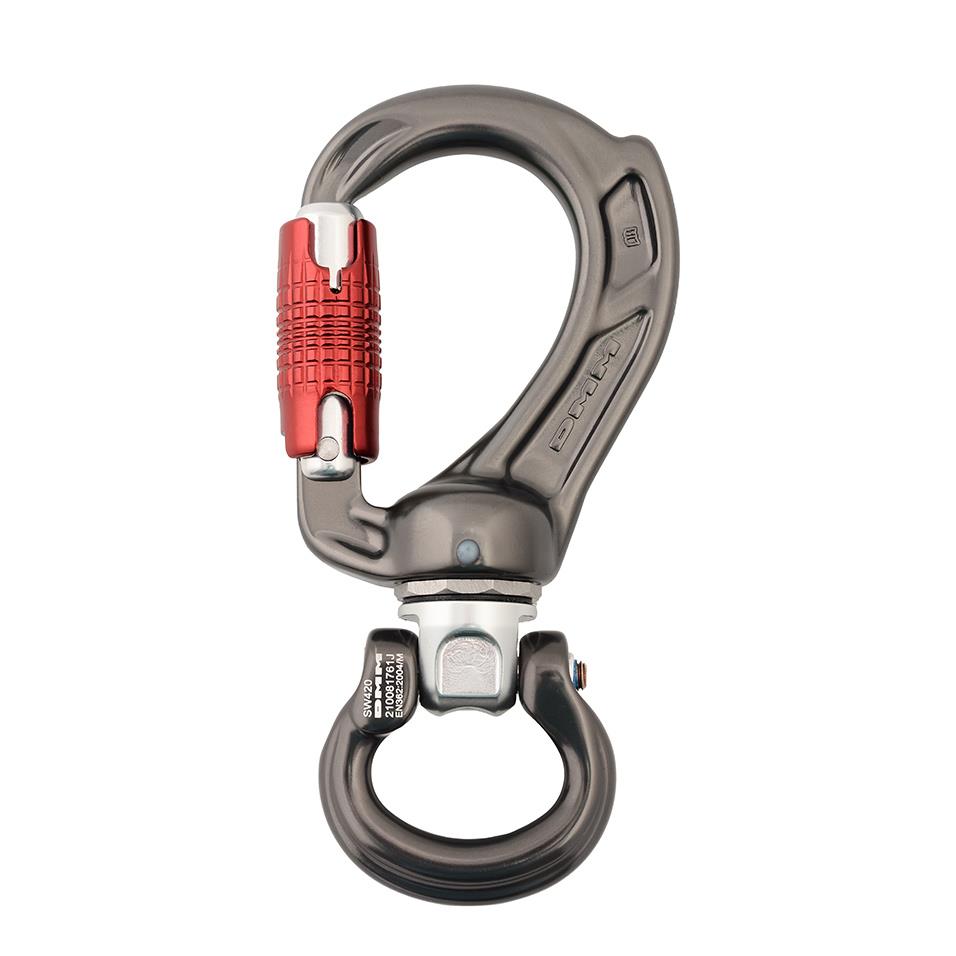

Director Swivel Boss Kwiklock Bow A643BS 64 x 130mm 104g 26kN N/A 9kN 17mm EN12275:2013 T
EN362:2004 T

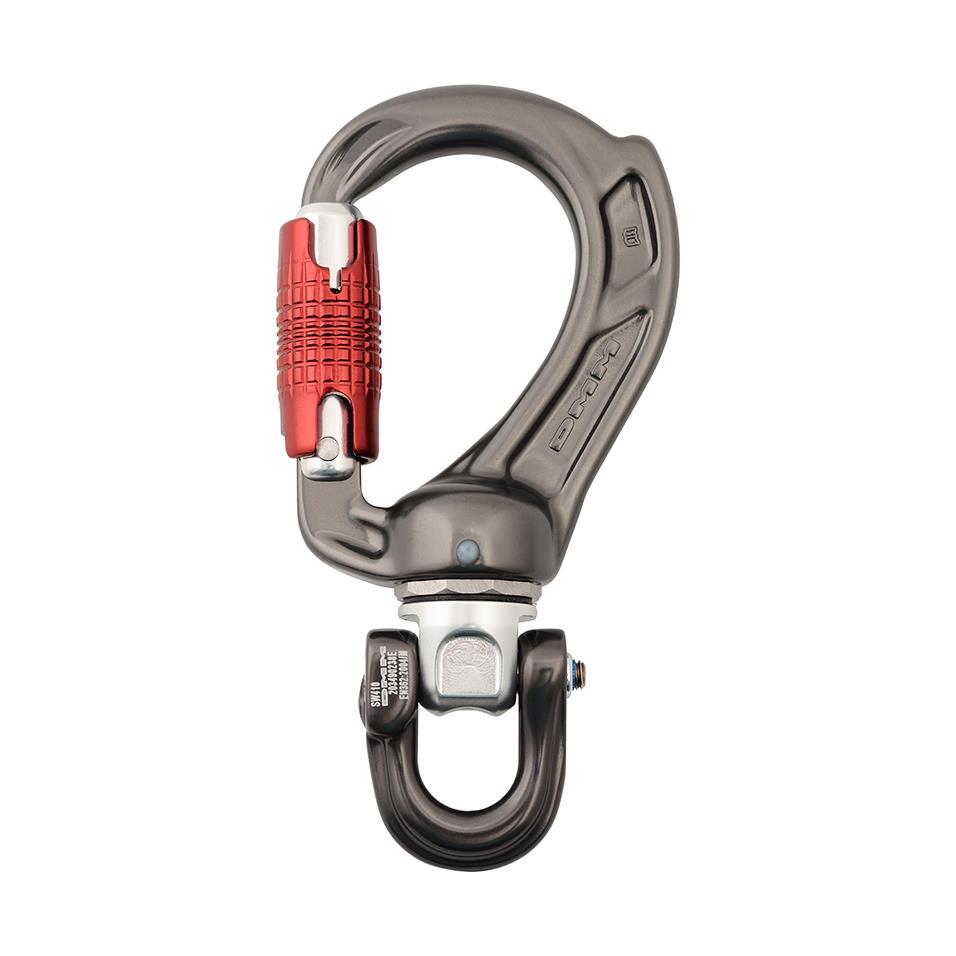

Director Swivel Boss Kwiklock D A643SS 64 x 130mm 104g 26kN N/A 9kN 17mm EN12275:2013 T
EN362:2004 T

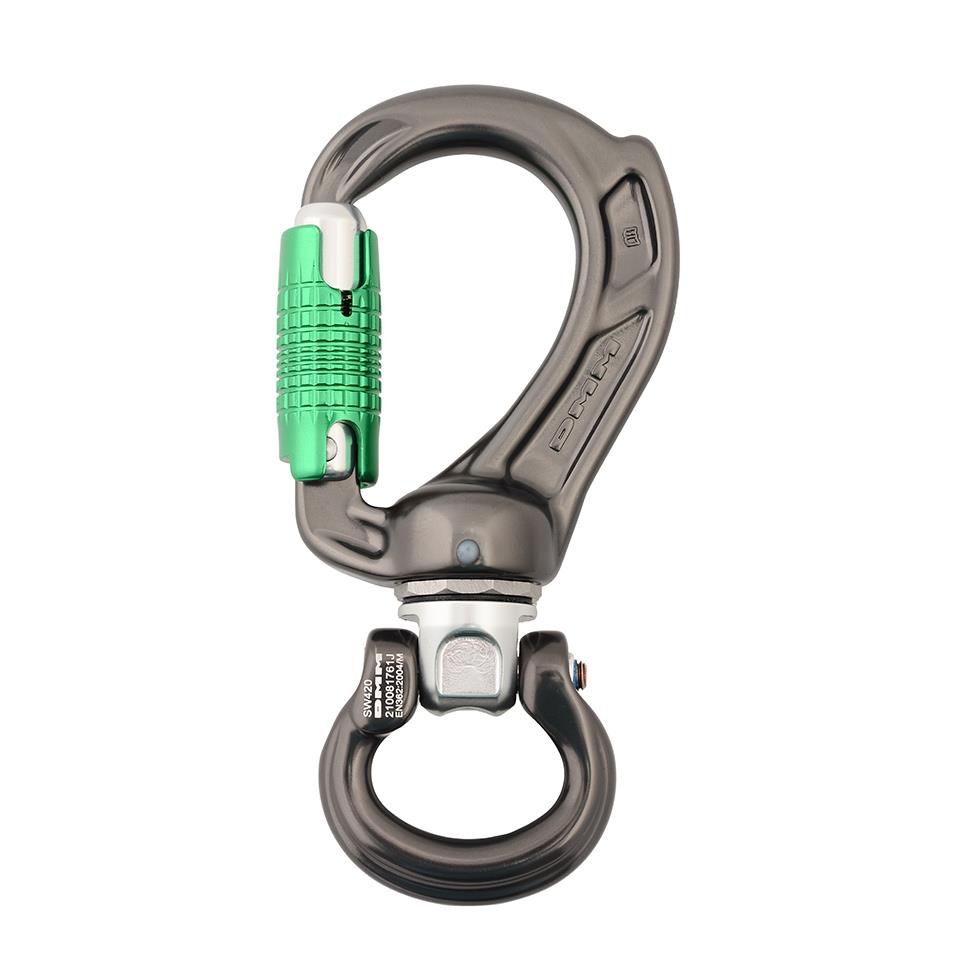

Director Swivel Boss Locksafe Bow A647BS 64 x 130mm 105g 26kN N/A 9kN 16mm EN12275:2013 T
EN362:2004 T

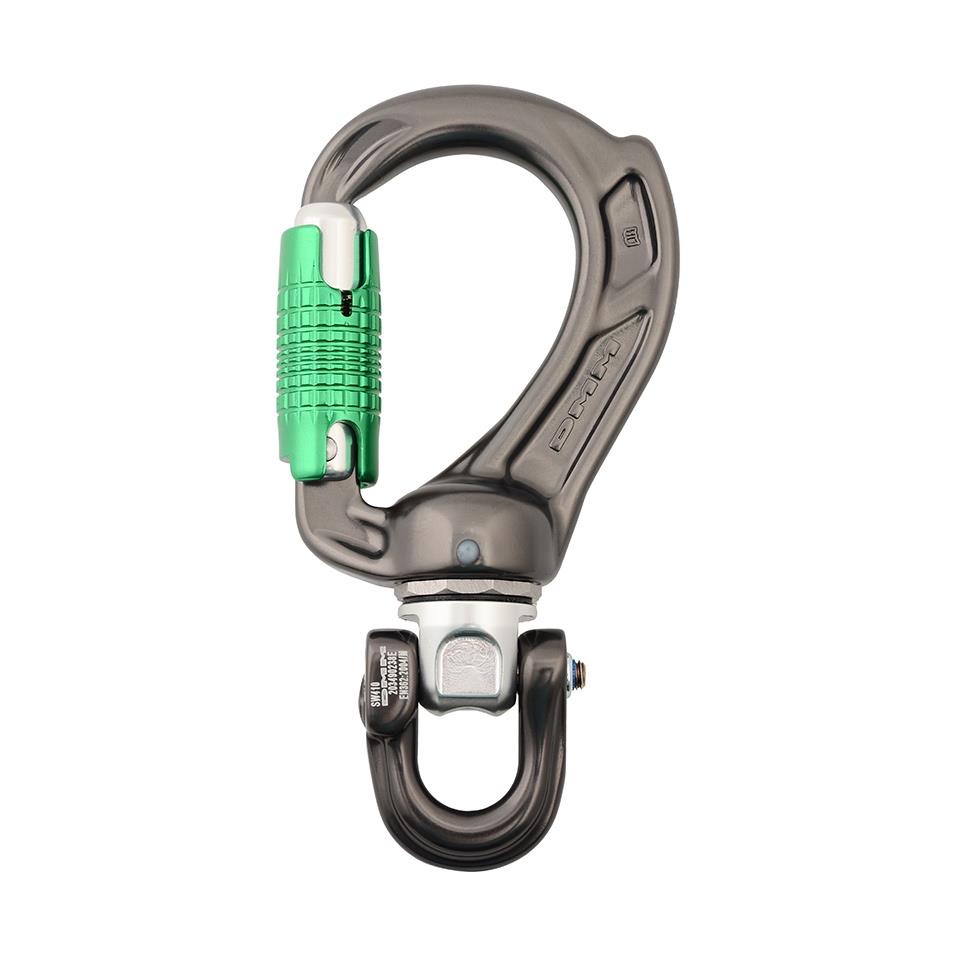

Director Swivel Boss Locksafe D A647SS 64 x 130mm 105g 26kN N/A 9kN 16mm EN12275:2013 T
EN362:2004 T

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
F
Frankoppa
Really Nice

I set it for Clutch, when I rope rescue it is pretty smooth NON-twist

A
Anders Frederiksen
Smoother life

This connector makes everything more neat, smooth and compact in your rope access life. Used it with descenders & backup device. Fantastic to have an absorber that's not all twisted. Use it with a descender and try spin around as fast as you can. I dare you.

×
