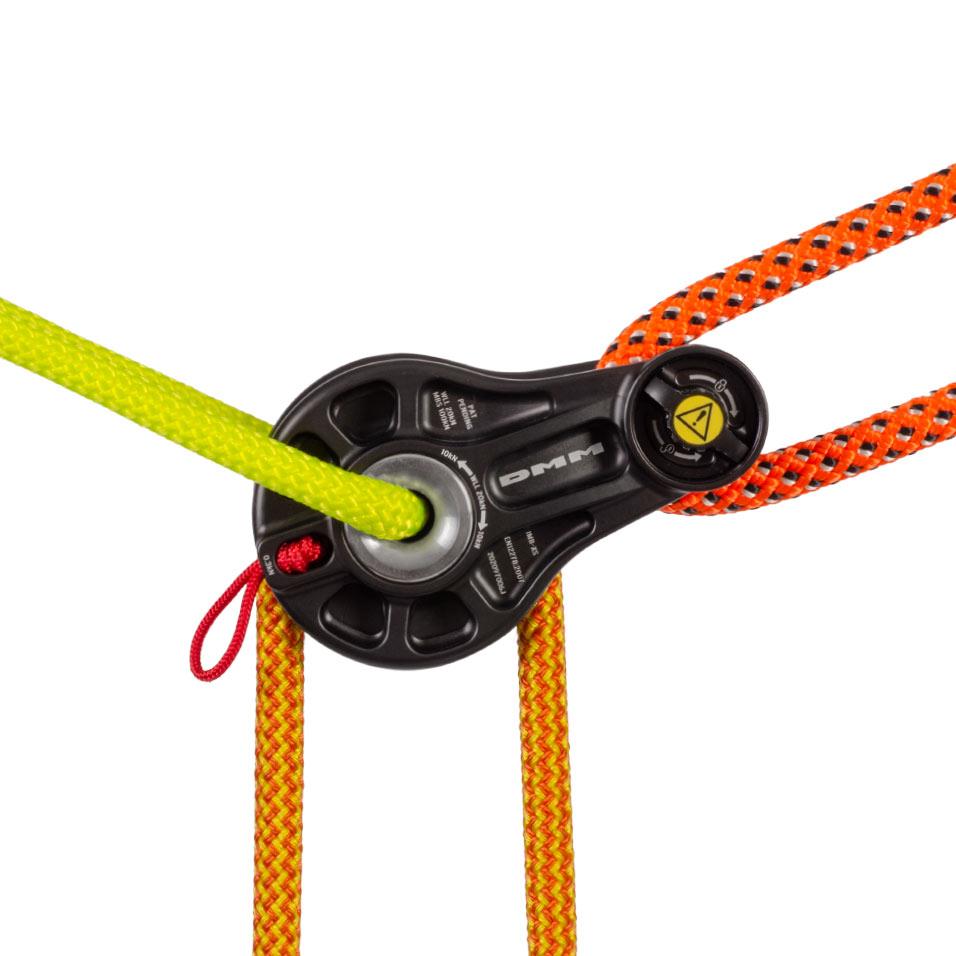

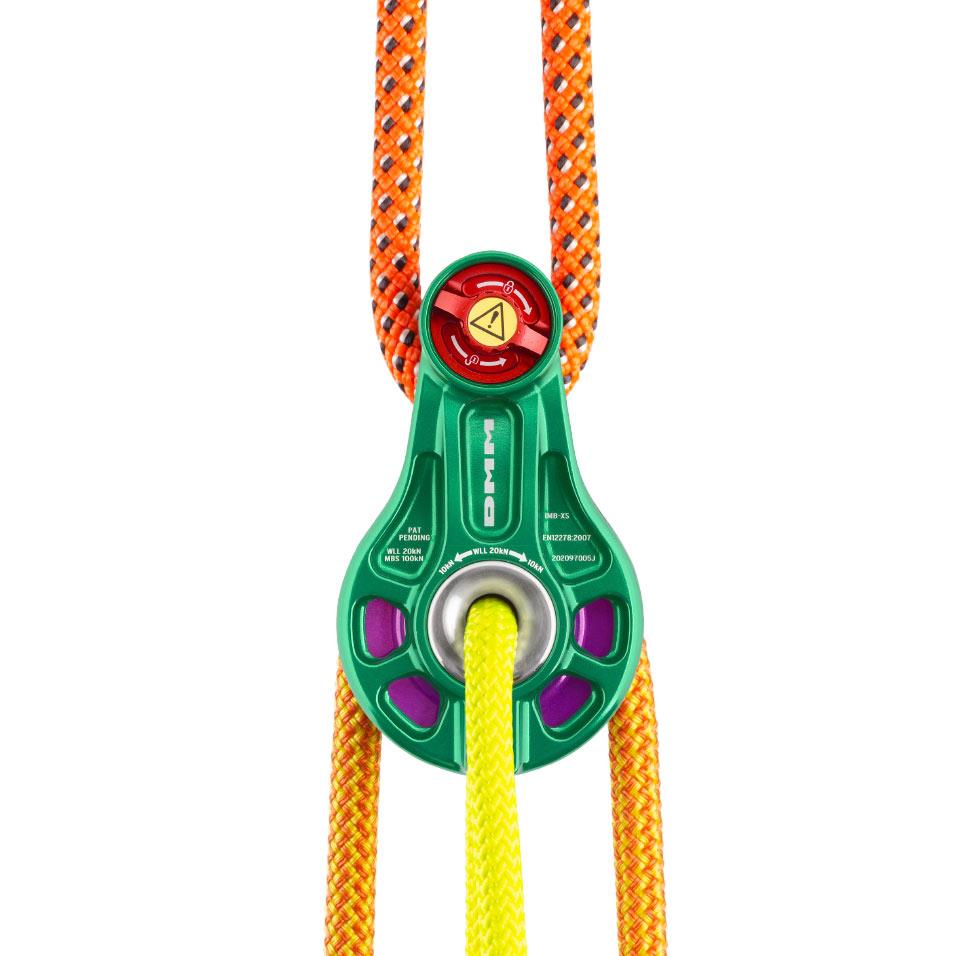

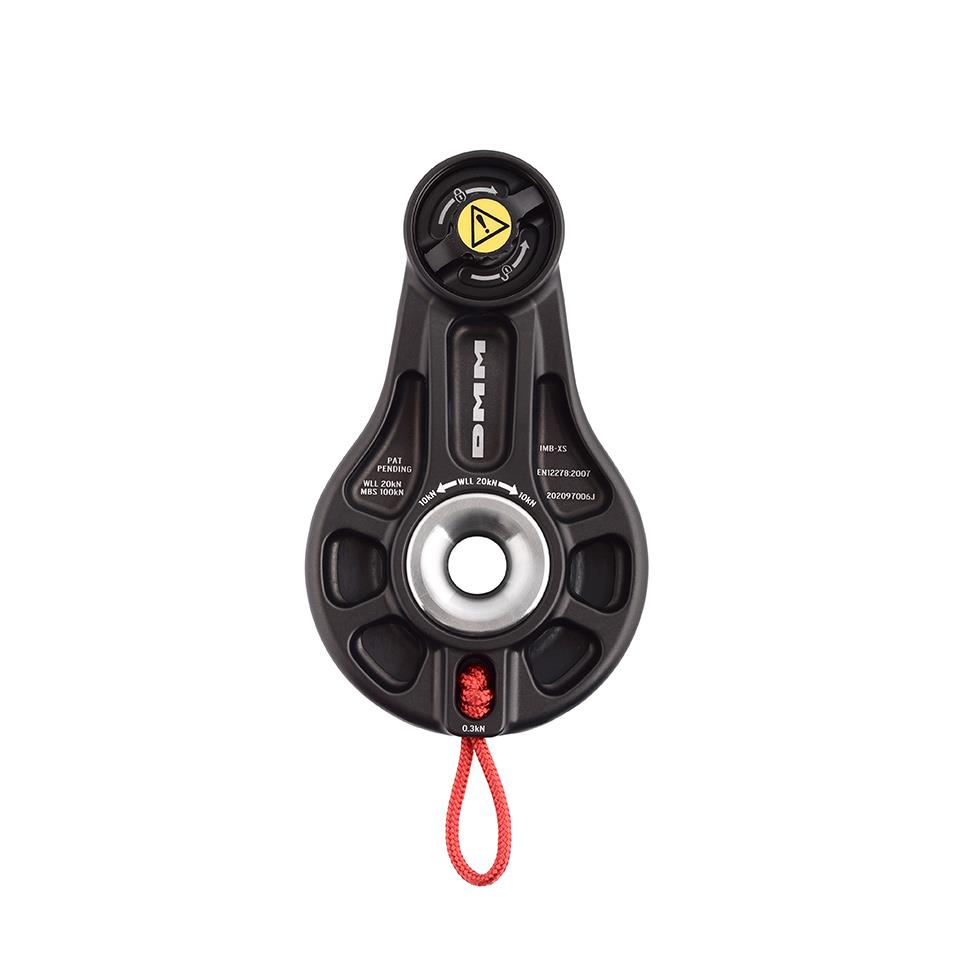

Impact Block XS

New kid on the block

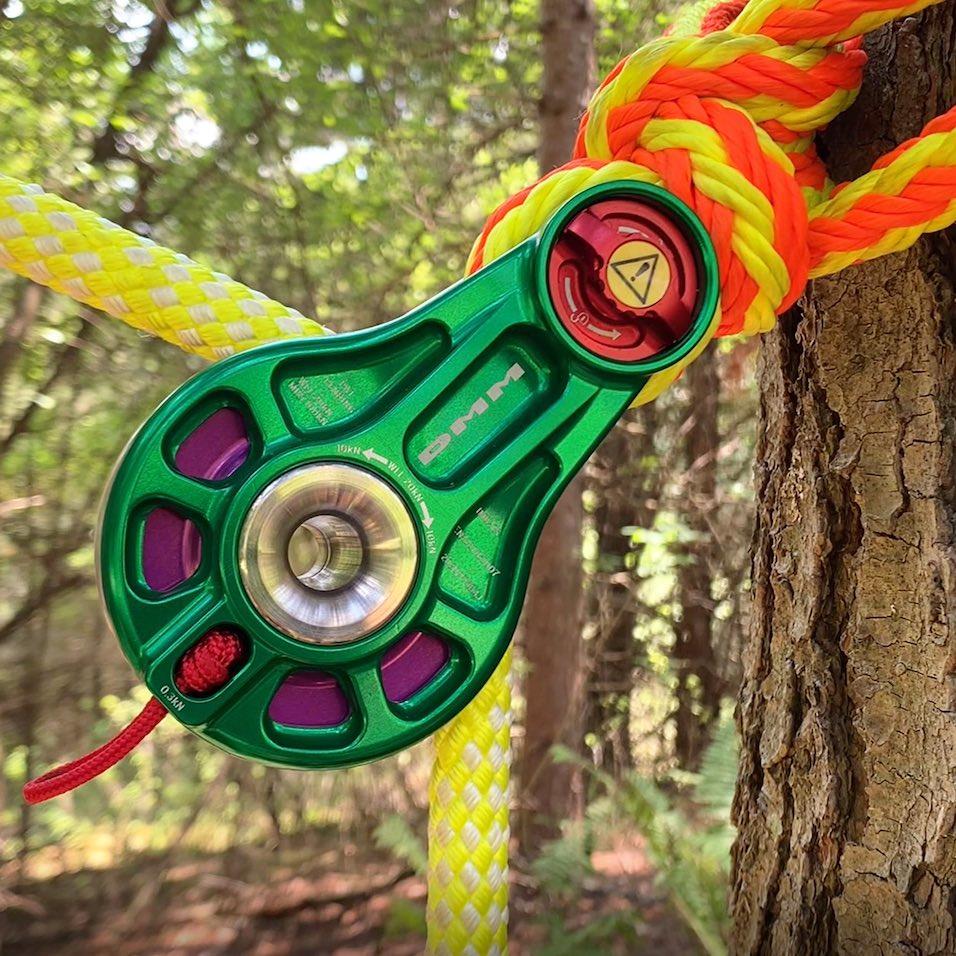

From its unique and doubly secure interlocking anchor bollard, to the highly efficient oversized ball bearings, this is a block with a difference. Designed to combine lightweight and compact with high performance, the Impact Block XS will become your best friend for redirect rigging, winching and snatching stem wood. In addition to highly evolved fairlead flares, the sheave is integrated with the side plates to ensure seamless transitions for your rigging line, while the all-new hollow axle design facilitates complex rigging configurations and allows for maintenance such as servicing of the bearings or replacement of the sheave. Validated for long term use in the toughest of environments with the most demanding of operators, robustness and resilience are already proven.

Product Name Product Code Weight MBS WLL Max Rope Diameter Max Sling Diameter Dimensions (W x H x D) Certification Price
Impact Block XS Green - IMB-XSGR
IMB-XSGR 708g 100kN 20kN 16mm 20mm 137 x 82 x 55mm EN12278:2007
Impact Block XS Matt Grey - IMB-XSMG
IMB-XSMG 708g 100kN 20kN 16mm 20mm 137 x 82 x 55mm EN12278:2007

Compact, lightweight and highly efficient

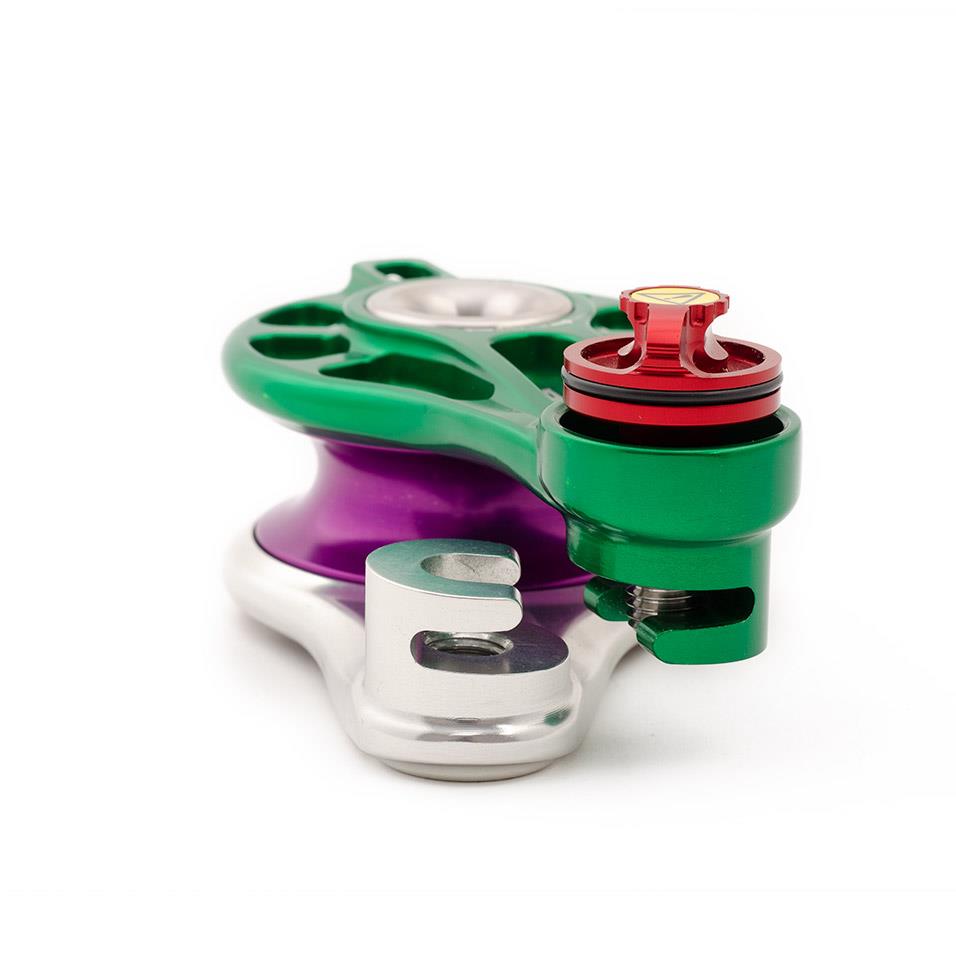

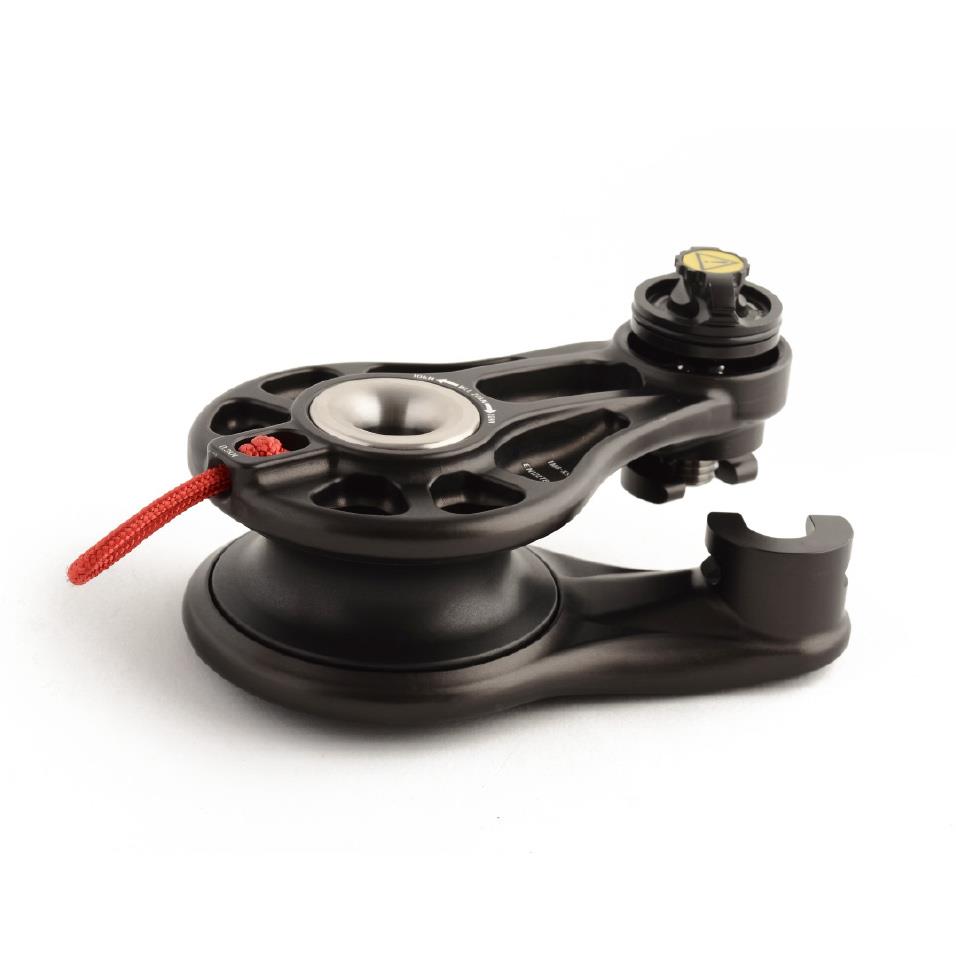

Double security at the anchor bollard – interlocking bollard features and threaded axle

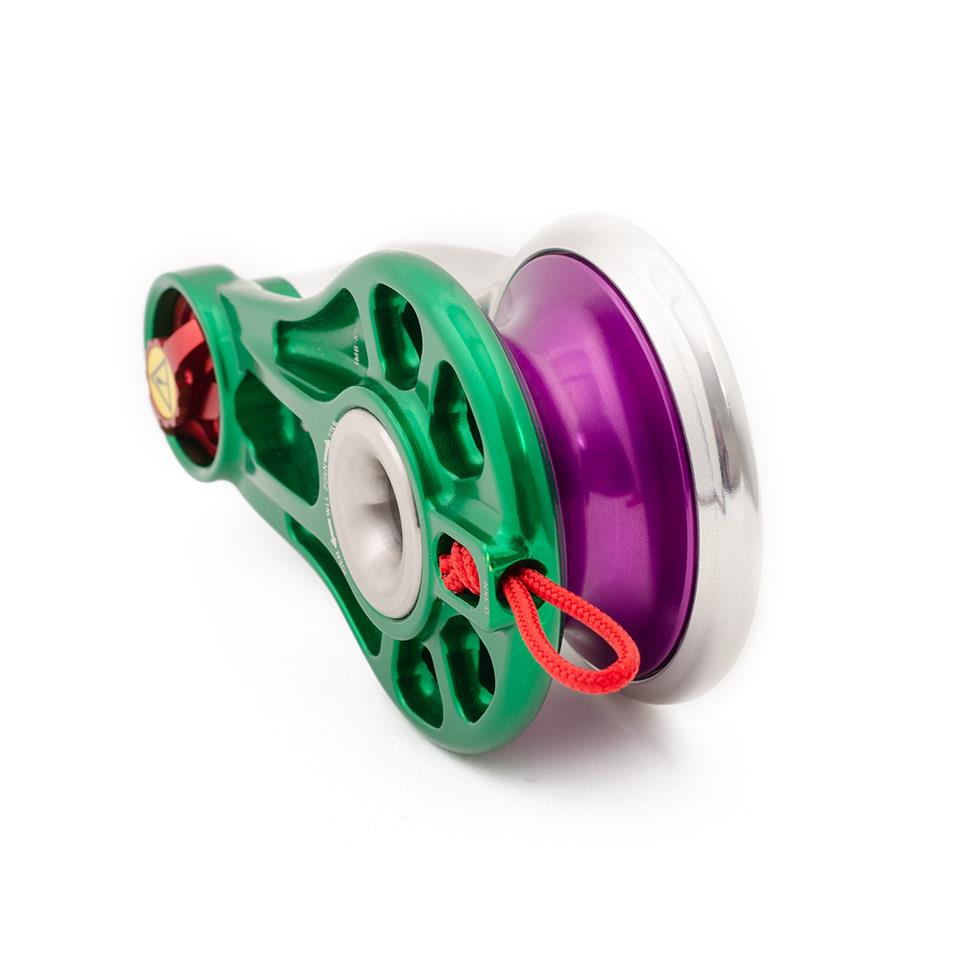

Large sheave diameter and efficient bearings make this block ideal for both everyday rigging and winch operations (e.g. with capstan winches)

Hollow axle facilitates configurations beyond the normal

Hauling loop simplifies hauling, transfer and storage

Highly evolved fairleads flairs help maintain efficiency even in suboptimal set ups

Serviceable by manufacturer e.g. bearing replacement

Patents Pending

Impact Block XS
