Dragonfly Offsets

Versatile protection for narrow cracks and small pockets. These cams cover placements from 8.7 to 28.3mm.

We have evolved the celebrated Dragonfly Cam range to include the Dragonfly Offsets, which alongside the Dragon Cams create the ultimate cam family.

Designed for irregular, flared cracks and pin scars, the Dragonfly Micro Cam Offsets feature colour coded slings and thumb loops that allow you to make the correct placement when it matters most.

The same camming angle of 13.75°, used with our Dragons and Dragonfly Micro Cams, provides the optimum balance of holding power and range. You will appreciate the holding power of the TripleGrip lobes with their ‘raw alu’ surface, particularly on smooth rock types such as slate and limestone. The narrow head width and compact trigger allow the cams to be placed deep in small pockets.

Dragonfly Micro Cam Offsets additional features:

  • Offset cam sizing for irregular cracks and pin scars
  • Trigger for quick distinction from normal sizes
  • Colour coded lobes
  • Sling colour corresponds to size of larger cams, thumb loop tubing colour corresponds to size of smaller cams
Product Name Product Code Colour Active Strength Passive Strength Weight Range Certification Price
Dragonfly Offset 2/3 - A75523

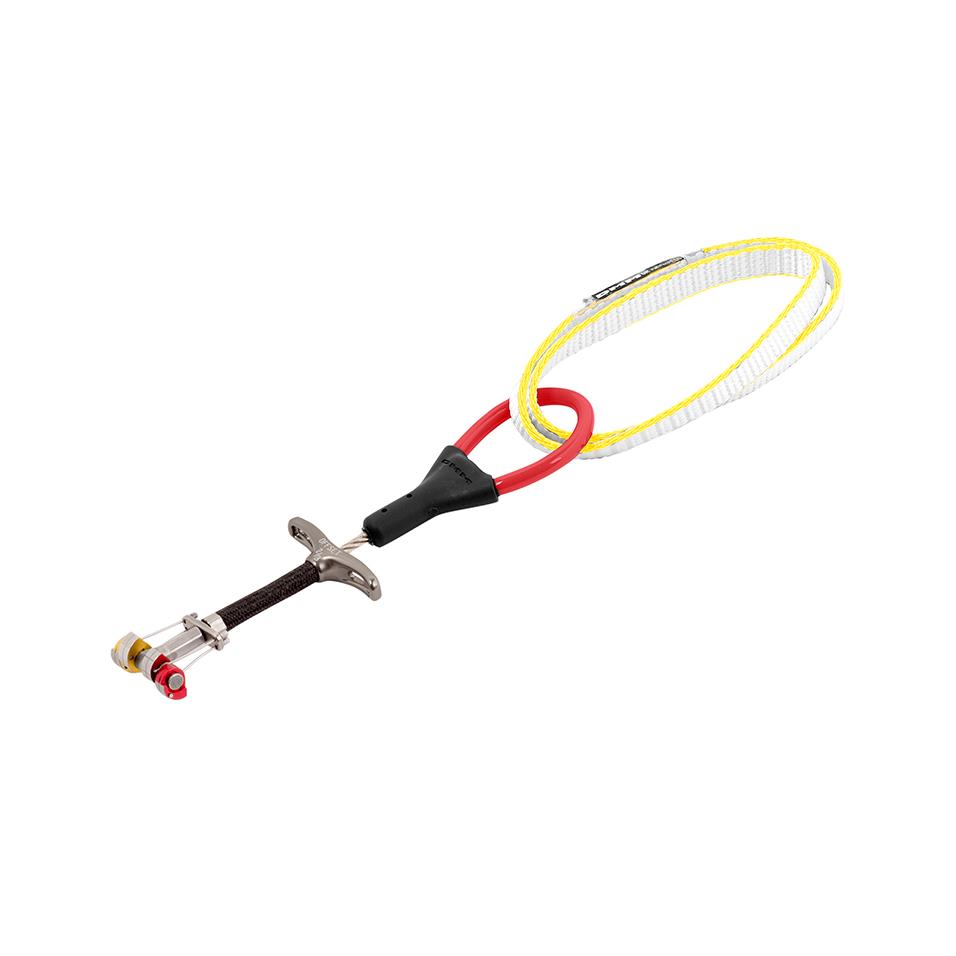

A75523 Red/Yellow 6kN n/a 56g 8.7-12.9 - 10.2-15.1mm EN12276:2013
Dragonfly Offset 3/4 - A75534

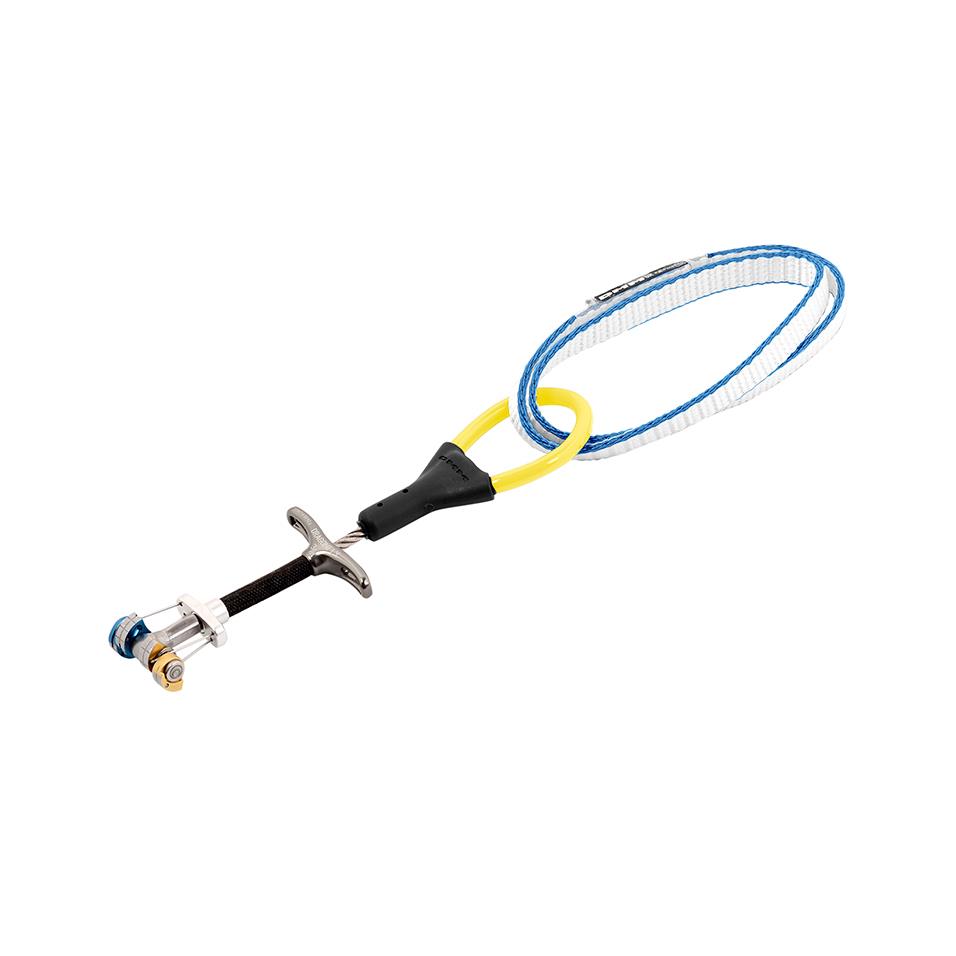

A75534 Gold/Blue 6kN n/a 67g 10.2-15.1 - 12.1-17.9mm EN12276:2013
Dragonfly Offset 4/5 - A75545

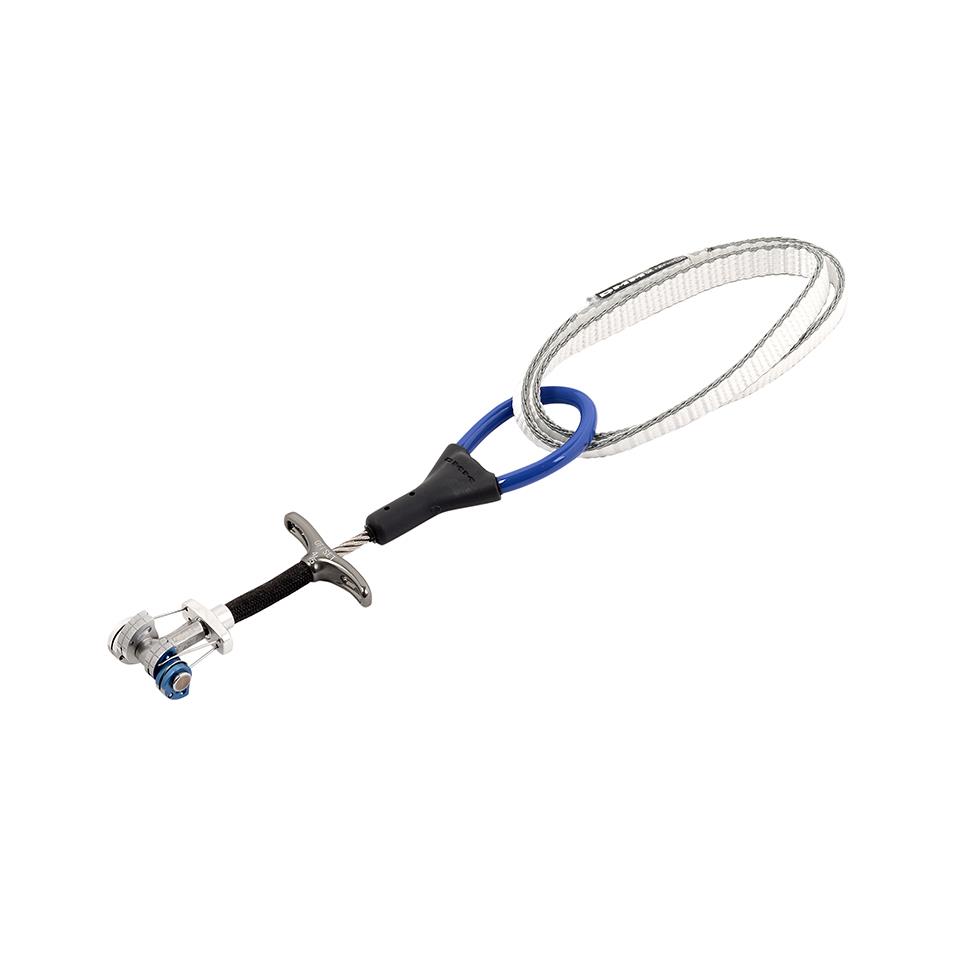

A75545 Blue/Grey 8kN n/a 68g 12.1-17.9 - 15.1-22.5mm EN12276:2013
Dragonfly Offset 5/6 - A75556

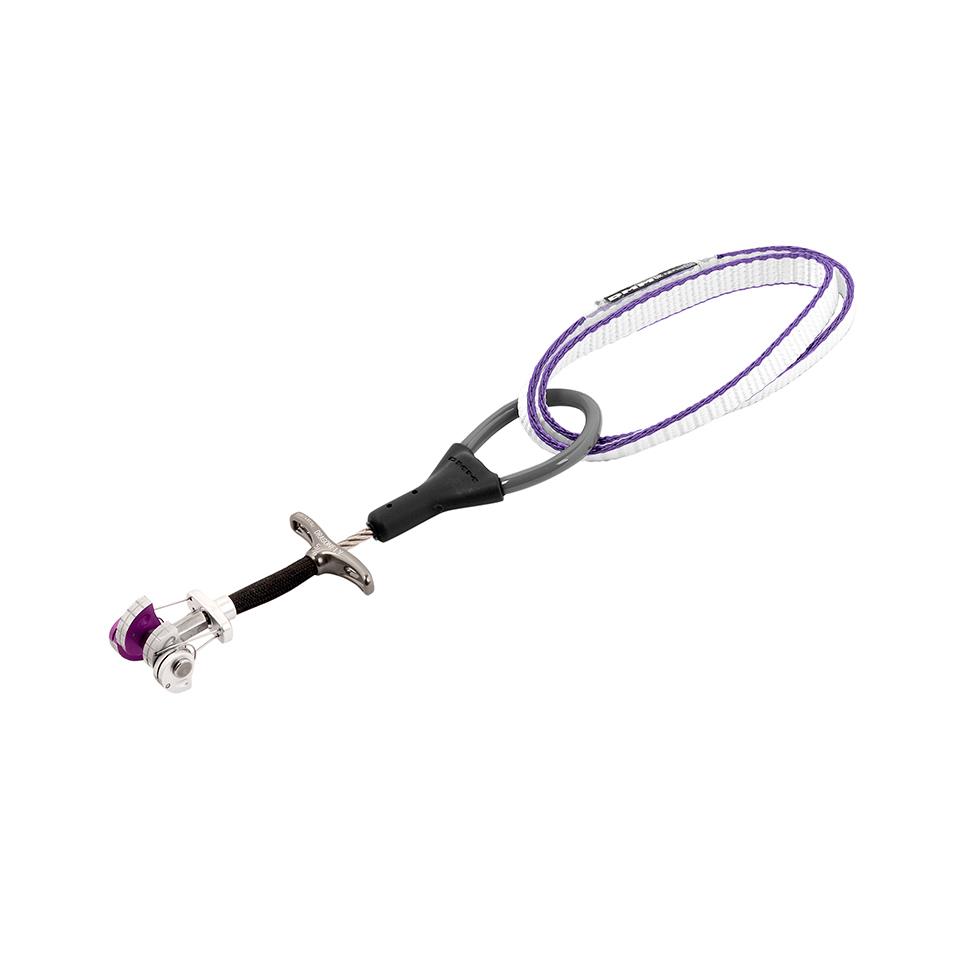

A75556 Silver/Purple 9kN n/a 71g 15.1-22.5 - 19-28.3mm EN12276:2013

13.75° camming angle

Proven optimum combination of holding power, range and performance

TripleGrip lobes with ‘raw alu’ surface

Improved grip

Ergonomic thumb loop and trigger

Easy to handle

Flexible stem cable

Minimises walking

Narrow head width

Fits small pockets

Extendable 11mm Dynatec sling with compact stitch pattern

Extend either strand

Complement smaller Dragon Cams

Sizes 4, 5, and 6 Dragonfly Cams overlap with size 00 – 1 Dragons

Compact trigger bar

Allows deep placements
